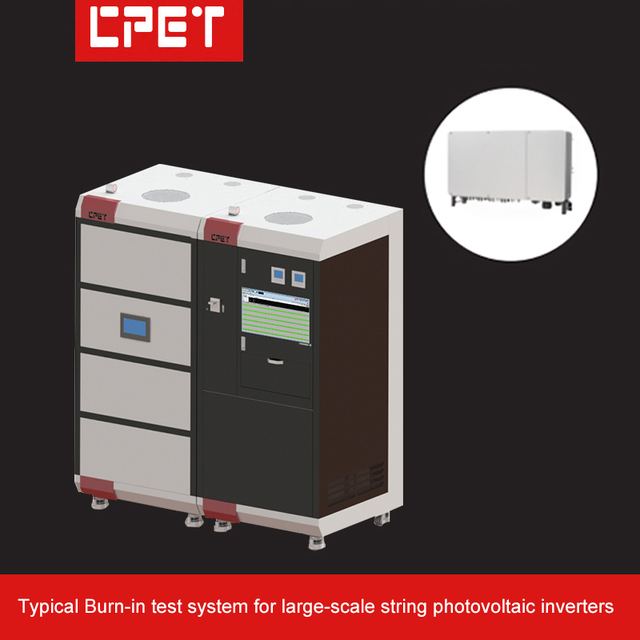

Typical Burn-in Test System For Large-scale String Photovoltaic Inverters Aging Machine
Overview
Typical Burn-in Test System For Large-scale String Photovoltaic Inverters Aging Machine supplied by Shenzhen CPET Electronics Co., Ltd. Key published specifications: Display Accuracy ±(1%+0.2%FS); Overall Size 5800*860*2050mm; Burn-in Product Power 150kW/bit; Burn-in Product Input Current 500A/bit. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Display Accuracy | ±(1%+0.2%FS) |
|---|---|
| Overall Size | 5800*860*2050mm |
| Burn-in Product Power | 150kW/bit |
| Burn-in Product Input Current | 500A/bit |
| Total input voltage | Three-phase five-wire system 220Vac (rated) |
| Total input current | 200A*6 |
| Total input power | 100kW*6 |
| Fire protection requirements | Materials meet UL 94V0 rating |
| Safety requirements | Comply with IEC62368 international standard design requirements |
| Burn-in product input voltage | 50-1000Vdc/bit |
| Burn-in Product Load Category | 130kW/bit |
| Burn-in product output voltage | 220/380Vac/50Hz Three-phase five-wire |
| Burn-in product output current | 200A/bit |
| AC Connector Type | PA350 (L1/ L2/ L3/N/PE) |
| DC Connector Type | MC4 photovoltaic connector (PV+/PV-/8 groups) |
| Signal Connector Type | RJ45 (network port) |
| Input power | 600kW |
| Feedback power | 520kW |
| Constant temperature range | Room temperature+5°C-60°C |
| Volume size | 800*800*2050mm |
| Product area air duct direction | Forward wind, upward wind |
| Cooling method | Air cooling |
| Material | 1.5mm cold rolled sheet |
| Control precision | ±(1%+0.2%FS) |
| Bad way of reporting | Audible alarm |
| Report format | CSV format |
| Statistics | Yield/CPK/Time Distribution |
| MES docking | Support |
| Scan speed | 5S |
| Certification | CE,ROHS |
