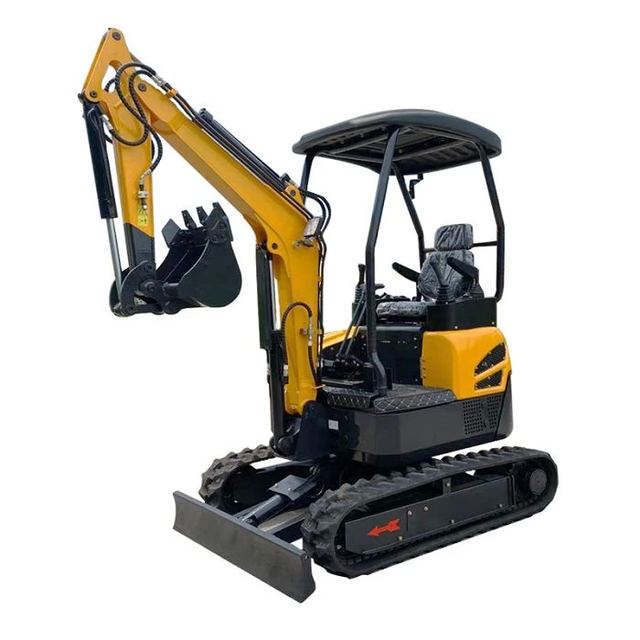

Small Digger
Overview
Small Digger supplied by Shandong Infront Machinery Co., Ltd. Listed under Excavators. Key published specifications: Total weight 2000kg; Standard bucket capacity 0.045m3; Rated power 14Kw/Kuboat; Track gauge 950mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Total weight | 2000kg |
|---|---|
| Standard bucket capacity | 0.045m3 |
| Rated power | 14Kw/Kuboat |
| Track gauge | 950mm |
| Total length | 3850mm |
| Platform ground clearance | 458mm |
| Ground pressure | 38Kp |
| Track width | 230mm |
| Track height | 320mm |
| Track length | 1900mm |
| Total height | 2128mm |
| Max.ground digging radius | 4045mm |
| Max.digging depth | 2150mm |
| Max.digging height | 3556mm |
| Max.unloading height | 2452mm |
| Main pressure | 18Mpa |
| Min.radius of gyration | 1190mm |
| Dozer blade maximum lifting height | 325mm |
| Dozer blade maximum earthmoving height | 175mm |
