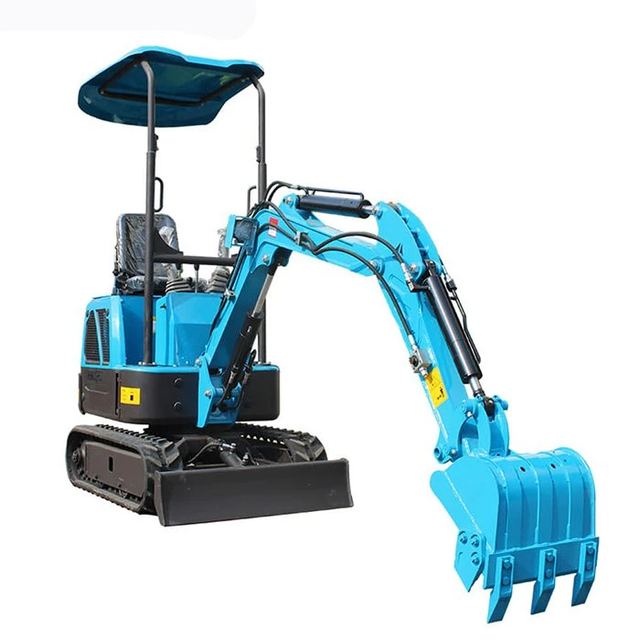

Micro Digger
Overview
Micro Digger supplied by Shandong Infront Machinery Co., Ltd. Listed under Excavators. Key published specifications: Total weight 1000kg; Standard bucket capacity 0.02m3; Rated power 8.6KW KOOP; Track 770mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Total weight | 1000kg |
|---|---|
| Standard bucket capacity | 0.02m3 |
| Rated power | 8.6KW KOOP |
| Track | 770mm |
| Track length | 1090mm |
| Platform ground clearance | 380mm |
| Chassis width | 940mm |
| Track width | 180mm |
| Track height | 320mm |
| Total height | 1636mm |
| Max.ground digging radius | 2400mm |
| Max.digging depth | 1600mm |
| Max.digging height | 2600mm |
| Max.unloading height | 1750mm |
| Max.vertical digging depth | 1320mm |
| Min.radius of gyration | 1190mm |
| Dozer blade maximum lifting height | 325mm |
| Dozer blade maximum earthmoving height | 175mm |
