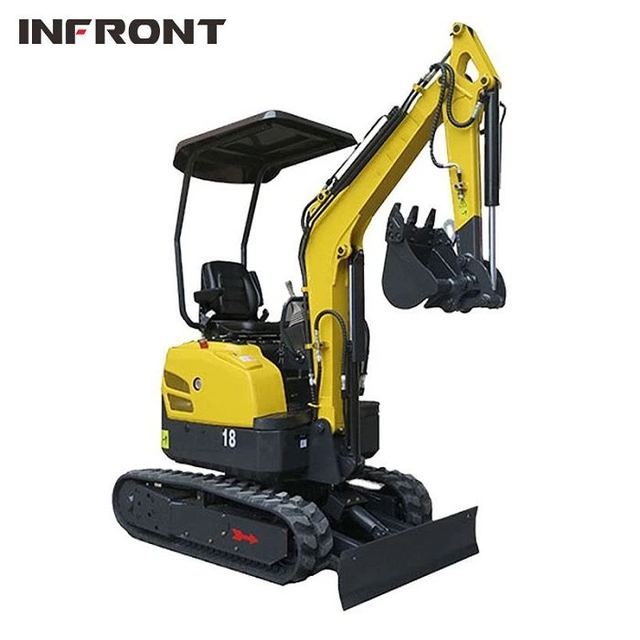

Bagger Mini
Overview
Bagger Mini supplied by Shandong Infront Machinery Co., Ltd. Listed under Excavators. Key published specifications: Total weight 1600kg; Standard bucket capacity 0.045m3; Rated power 10KW/ Yanmar; Track 770mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Total weight | 1600kg |
|---|---|
| Standard bucket capacity | 0.045m3 |
| Rated power | 10KW/ Yanmar |
| Track | 770mm |
| Track length | 1090mm |
| Platform ground clearance | 380mm |
| Chassis width | 1040mm |
| Track width | 180mm |
| Track height | 320mm |
| Total height | 2200mm |
| Max.ground digging radius | 3470mm |
| Max.digging depth | 2150mm |
| Max.digging height | 3275mm |
| Max.unloading height | 2310mm |
| Max.vertical digging depth | 1740mm |
| Min.radius of gyration | 1440mm |
| Dozer blade maximum lifting height | 262mm |
| Dozer blade maximum earthmoving height | 192mm |
