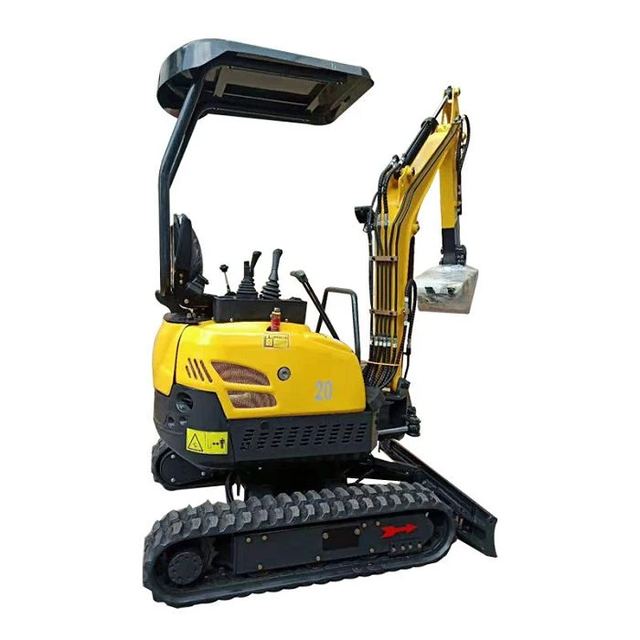

2 Ton Digger
Overview
2 Ton Digger supplied by Shandong Infront Machinery Co., Ltd. Listed under Excavators. Key published specifications: Total weight 1600kg; Standard bucket capacity 0.045m3; Rated power 10Kw/Yanmar; Track 1130mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Total weight | 1600kg |
|---|---|
| Standard bucket capacity | 0.045m3 |
| Rated power | 10Kw/Yanmar |
| Track | 1130mm |
| Track length | 1500mm |
| Platform ground clearance | 437mm |
| Chassis width | 1040mm |
| Track width | 230mm |
| Track height | 360mm |
| Total height | 2380mm |
| Max.ground digging radius | 3470mm |
| Max.digging depth | 2150mm |
| Max.digging height | 3275mm |
| Max.unloading height | 2310mm |
| Max.vertical digging depth | 1740mm |
| Min.radius of gyration | 1440mm |
| Dozer blade maximum lifting height | 262mm |
| Dozer blade maximum earthmoving height | 192mm |
