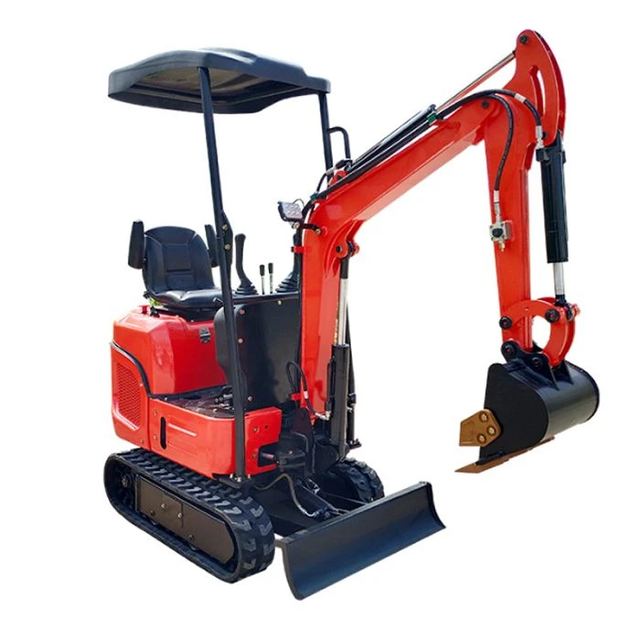

Micro Digg
Model YFE10
Overview
Micro Digg supplied by Shandong Infront Machinery Co., Ltd. Listed under Excavators. Key published specifications: Operating weight 1000kg; DIgging bucket capacity 0.025cbm; Bucket width 380mm; Engine koop euro5. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Operating weight | 1000kg |
|---|---|
| DIgging bucket capacity | 0.025cbm |
| Bucket width | 380mm |
| Engine | koop euro5 |
| Rated power | 7kw/3600./r/min |
| Displacement | 0.854l |
| Bore stroke | three cylinder ,water cool |
| Main pump | rhinoceros |
| Hydraulic system pressure | 16Mpa |
| Swing motor | eaton |
| Traveling motor | eaton |
| Travel speed | 2km/h |
| Total length of track | 1230mm |
| Track width | 180mm |
| Track height | 320mm |
| Hydraulic oil tank capacity | 16L |
| Max.vertical digging depth | 1590mm |
| Min.radius of gyration | 1480mm |
| Dozer blade maximum lifting height | 325mm |
| Dozer blade maximum earthmoving height | 175mm |
| Engine koop | euro5 |
