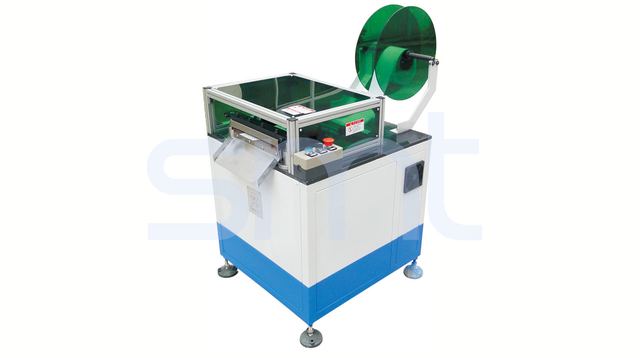

Slot Wedge Stator Paper Cutting Machine Adjustable Width
Model CG200
Overview
Slot Wedge Stator Paper Cutting Machine Adjustable Width, from SMT Intelligent Device Manufacturing (Zhejiang) Co., Ltd in Huzhou, Zhejiang. The listing gives item Data, suitable paper roll width 20~140mm and suitable paper thickness 0.16~0.36mm.
Technical specifications
| Item | Data |
|---|---|
| Suitable paper roll width | 20~140mm |
| Suitable paper thickness | 0.16~0.36mm |
| Feeding length | 9~200mm |
| Folding width | 2~5mm, adjustable |
| Cutting speed | About 130 pieces per minute |
| Folding & cutting precision | 0.2mm |
| Power supply | 220V, 50/60Hz, 0.5kW |
| Machine weight | About 260kg |
| Dimension (L x W x H) | 460 x 910 x 1220mm |
| Certification | ISO/SGS Audit |
