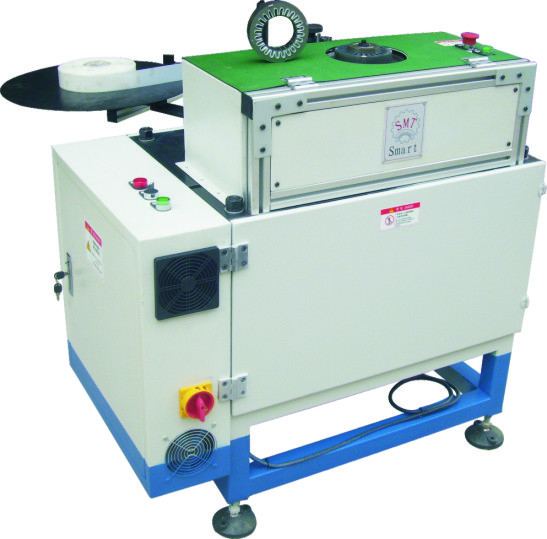

Slot Insulation Machine Starter Armature Production SMT-C100
Model C100
Overview
Slot Insulation Machine Starter Armature Production SMT-C100, from SMT Intelligent Device Manufacturing (Zhejiang) Co., Ltd in Huzhou, Zhejiang. Published figures include core length 10-90mm, stator i.d 20-80mm and stator o.d ≤140 mm.
Technical specifications
| Core Length | 10-90mm |
|---|---|
| Stator I.D | 20-80mm |
| Stator O.D | ≤140 mm |
| Height of edge folded | 2-4mm |
| Insulation paper’s thickness | ≤0.35mm |
| Efficiency | 0.5s/s |
| Power Supply | 380V, 50/60Hz, 0.75kW |
| Weight | 400kg |
| Dimension | 1100*650*1000mm |
| Automatic Grade | Full-Automatic |
| Certification | ISO/SGS Audit |
