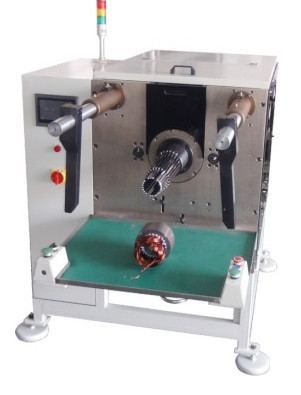

Servo Coil Inserting Machine for 100-200mm Stator ID
Model SMT-QX10
Overview
Servo Coil Inserting Machine for 100-200mm Stator ID, listed by SMT Intelligent Device Manufacturing (Zhejiang) Co., Ltd in Huzhou, Zhejiang. The listing gives core length ≤250mm, stator i.d Φ100-200mm and stator o.d Φ170-260mm.
Technical specifications
| Core length | ≤250mm |
|---|---|
| Stator I.D | Φ100-200mm |
| Stator O.D | Φ170-260mm |
| Stack Height Range | 90-220mm |
| Tooling stroke | ≤90mm |
| Compatible wire | CU/AL |
| Air Pressure | 0.5～1MPa |
| Power | 10Kw |
| Power supply | 3-Phase 380V/50Hz |
| Weight | 11500kg |
| Dimension | (L)2400×(W)1300×(H)1700mm |
| Certification | ISO/SGS Audit |
