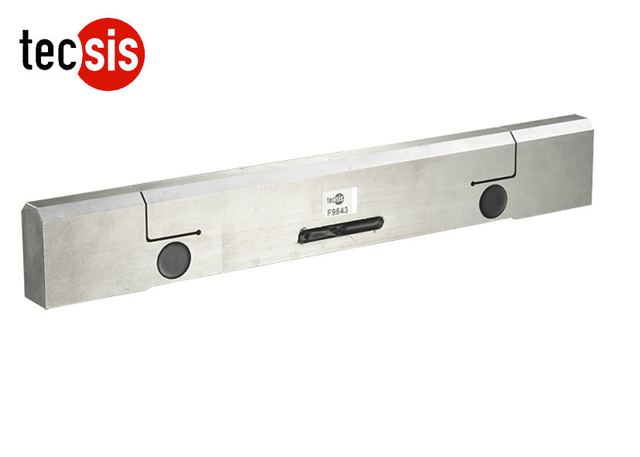

Rail Way Miniature Load Cell Weight Scale For Weighing Goods Wagons
Model F9843
Overview
Rail Way Miniature Load Cell Weight Scale For Weighing Goods Wagons supplied by Shenzhen) Sensors Co., Ltd. Key published specifications: Structure Compact; Material Stainless Steel; Capacity 2/3/5t; Oem/Odm Acceptable. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Structure | Compact |
|---|---|
| Material | Stainless Steel |
| Capacity | 2/3/5t |
| Oem/Odm | Acceptable |
| Rated output | 2.0±0.5% mV/V |
| Zero balance | ±2% F.S. |
| Non-linearity | 0.1% F.S. |
| Total error | 0.1% F.S. |
| Temp. effect on output | 0.2% F.S. / 10ºC |
| Temp. effect on zero | 0.2% F.S. / 10ºC |
| Recommended excitation | 5~10VDC |
| Maximum excitation | 15VDC |
| Compensated temp. range | - 10~40ºC |
| Operation temp. range | - 20~80ºC |
| Safe overload | 120% F.S. |
| Ultimate overload | 150% F.S. |
| Cable size | Ø6*3000 mm |
| Protection class | IP67 |
| Standard | carton |
| Model | F9843 |
| Technical parameters | Specifications |
| Input | Red(+) Black(-); |
| Output | Green(+) White(-); |
