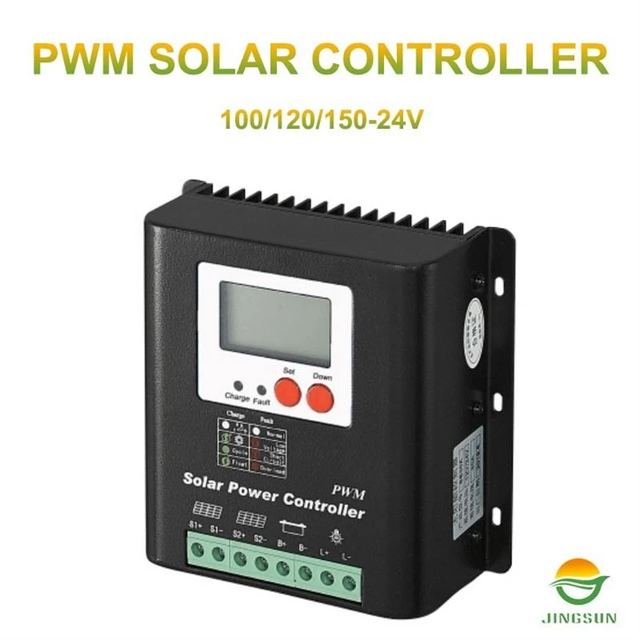

PWM 24V
Overview
PWM 24V supplied by Energy Co., Ltd. Listed under Solar Electric Panels. Key published specifications: System Voltage 24V; Max Charging Current 100A/120A/150A; DC Output Power 60A; NO Load Consume <30mA. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| System Voltage | 24V |
|---|---|
| Max Charging Current | 100A/120A/150A |
| DC Output Power | 60A |
| NO Load Consume | <30mA |
| PV Input Voltage | ≤55V |
| Over Voltage Protect | 33.0V±1% |
| Over Voltage Recovery | 30.0V±1% |
| Equal Voltage | 29.2V±1%(adjustable) |
| Boost Voltage | 28.8V±1% |
| Float Voltage | 27.6V±1% |
| Low Voltage Protect | 22.2V±1%(adjustable) |
| Low Voltage Recovery | 25.6V±1%(adjustable) |
| Night Recognize Voltage | 6.0V±1% |
| Day time Recognize Voltage | 14.0V±1% |
| Temperature Compensation | -4.0mv/℃/2V |
| IP Protect | IP30 |
| Cooling Way | Cooling fan |
| Size | 216mm*203mm*106.8mm |
| Weight | 2.5kg |
| Type | PWM Solar Charge Controller |
