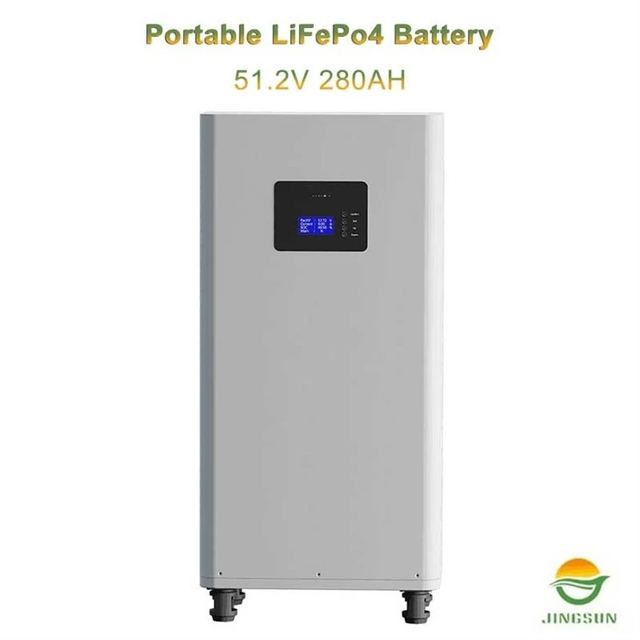

280Ah LiFePo4
Overview
280Ah LiFePo4 supplied by Energy Co., Ltd. Listed under Solar Electric Panels. Key published specifications: Configuration 1P16S; Nominal Voltage(V) 51.2V; Nominal Capacity(Ah) 280Ah @0.5C discharge current 25±2℃; Nominal Power(wh) 14.3kwh. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Configuration | 1P16S |
|---|---|
| Nominal Voltage(V) | 51.2V |
| Nominal Capacity(Ah) | 280Ah @0.5C discharge current 25±2℃ |
| Nominal Power(wh) | 14.3kwh |
| Dimension(mm) | 750*440*251mm |
| Weight (kg) | DIY BOX=28.5KG,DIY BOX with cells=112±5kg |
| Discharg Cut-off Voltage(V) | 41.6V |
| Charge Voltage(V) | 57.6V |
| Working Temperature | 0-50℃(Charge) |
| IP level | IP 20 |
| Certificates | CE, ROHS, MSDS, UN38.3 |
| Battery Type | 51.2V 280Ah Floor Lithium Battery |
