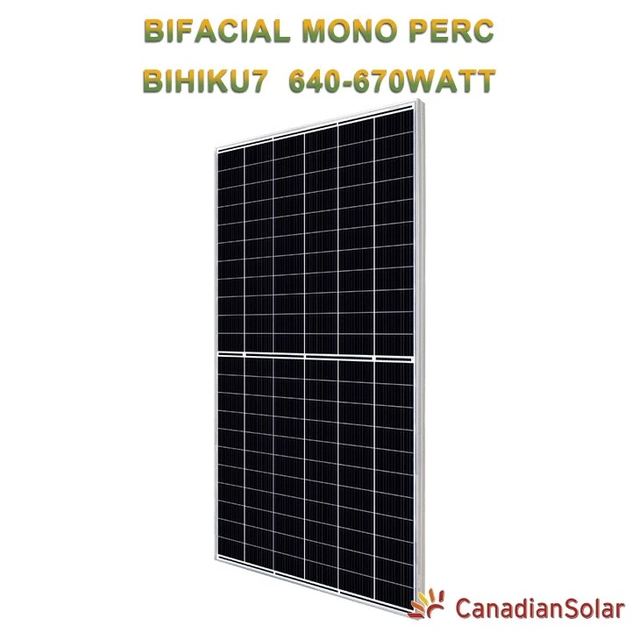

Canadian 670W
Overview
Canadian 670W supplied by Energy Co., Ltd. Listed under Solar Electric Panels. Key published specifications: Cell Type Mono-crystalline; Cell Arrangement 132 [2 x (11 x 6) ]; Weight 37.8 kg (83.3 lbs); Front Glass 2.0 mm heat strengthened glass with antireflective coating. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Cell Type | Mono-crystalline |
|---|---|
| Cell Arrangement | 132 [2 x (11 x 6) ] |
| Weight | 37.8 kg (83.3 lbs) |
| Front Glass | 2.0 mm heat strengthened glass with antireflective coating |
| Back Glass | 2.0 mm heat strengthened glass |
| Frame | Anodized aluminium alloy |
| J-Box | IP68, 3 bypass diodes |
| Cable | 4.0 mm² (IEC), 12 AWG (UL) |
| Connector | T6 or MC4-EVO2 or MC4-EVO2A |
| Per Pallet | 33 pieces |
| Operating Temperature | -40°C ~ +85°C |
| Max. System Voltage | 1500 V (IEC/UL) or 1000 V (IEC/UL) |
| Module Fire Performance | TYPE 29 (UL 61730) or CLASS C (IEC61730) |
| Max. Series Fuse Rating | 35 A |
| Protection Class | Class II |
| Power Tolerance | 0 ~ + 10 W |
| Temperature Coefficient (Pmax) | -0.34 % / °C |
| Temperature Coefficient (Voc) | -0.26 % / °C |
| Temperature Coefficient (Isc) | 0.05 % / °C |
| Nominal Module Operating Temperature | 41±3°C |
| Series | BiHiKu7 CS7N-640~670MB-AG |
| Power | 640-670Watt |
