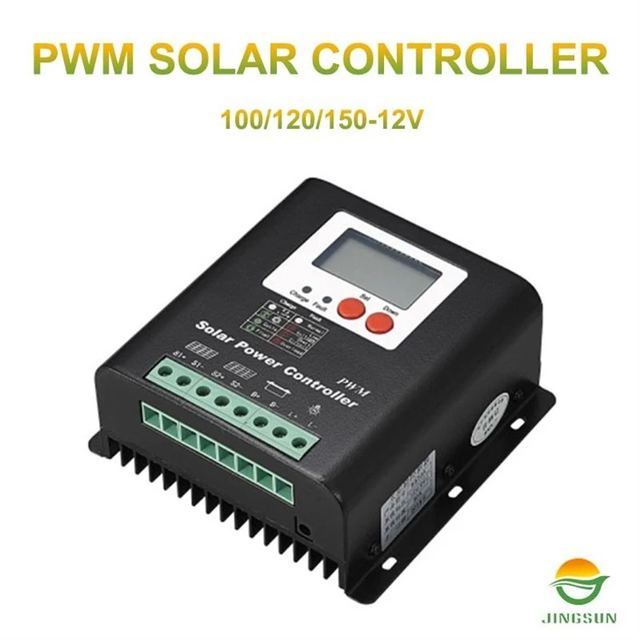

12V PWM
Overview
12V PWM supplied by Energy Co., Ltd. Listed under Solar Electric Panels. Key published specifications: System Voltage 12V; Max Charging Current 100A/120A/150A; DC Output Power 60A; NO Load Consume <20mA. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| System Voltage | 12V |
|---|---|
| Max Charging Current | 100A/120A/150A |
| DC Output Power | 60A |
| NO Load Consume | <20mA |
| PV Input Voltage | ≤36V |
| Over Voltage Protect | 16.5V±1% |
| Over Voltage Recovery | 15.0V±1% |
| Equal Voltage | 14.6V±1% (adjustable) |
| Boost Voltage | 14.4V±1% |
| Float Voltage | 13.8V±1% |
| Low Voltage Protect | 11.1V±1% (adjustable) |
| Low Voltage Recovery | 12.8V±1% (adjustable) |
| Night Recognize Voltage | 3.0V±1% |
| Daytime Recognize Voltage | 7.0V±1% |
| Temperature Compensation | -4.0mv/℃/2V |
| IP Protect | IP30 |
| Cooling Way | Cooling fan |
| Size | 216mm*203mm*106.8mm |
| Weight | 2.5kg |
| Material | PWM Solar Charge Controller |
| Power | 100/120/150-12V |
