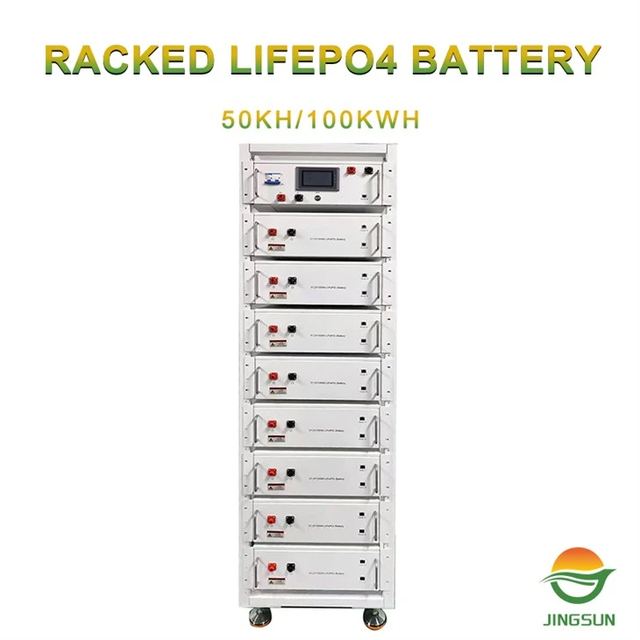

50KWH Battery
Model 50kW/100kWH
Overview
50KWH Battery supplied by Energy Co., Ltd. Listed under Batteries. Key published specifications: I tem V alue; Battery Type LFP; Dimension (L*W*H) 1200*1000*2150mm; Weight 1200kg. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| I tem | V alue |
|---|---|
| Battery Type | LFP |
| Dimension (L*W*H) | 1200*1000*2150mm |
| Weight | 1200kg |
| Communication Port | RS485 |
| Protection Class | IP55 |
| Grid connection | Off grid, On grid |
| Model | 50(100kwh) |
| Rated battery capacity | 100kWh |
| Battery Cell capacity | 120Ah |
| Rated system voltage | 844.8V |
| Series of battery | 1P*24S*11S |
| Rated AC power | 50kW |
| Rated AC current | 72A |
| Rated AC voltage | 400V,3P+N+PE,50/60Hz |
| THDi | <3%(rated power) |
| Oem/Odm | Support Customize |
