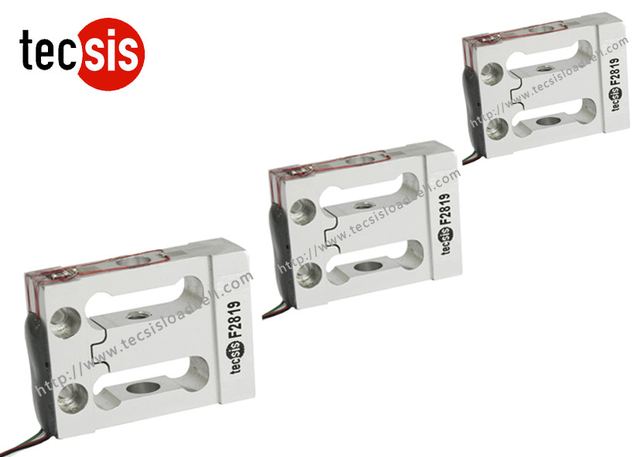

Precision Tension Compression Load Cell For Hopper Scale , High Accuracy
Model F2819
Overview
Precision Tension Compression Load Cell For Hopper Scale , High Accuracy supplied by Shenzhen) Sensors Co., Ltd. Key published specifications: Configuration Parallelogram; Material Aluminum Alloy And Alloy Steel; Capacity 2.2lbs~500lbs; Oem/Odm Acceptable. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Configuration | Parallelogram |
|---|---|
| Material | Aluminum Alloy And Alloy Steel |
| Capacity | 2.2lbs~500lbs |
| Oem/Odm | Acceptable |
| Rated output | 2.0±5%mV/V |
| Zero balance | ±3% F.S. |
| Non-linearity | 0.02% F.S.(≤100lbs) 0.06% F.S.(≥200lbs) |
| Hysteresis | 0.02% F.S.(≤100lbs) 0.06% F.S.(≥200lbs) |
| Repeatability | 0.02% F.S. |
| Creep (30min) | 0.03% F.S. |
| Temp. effect on output | 0.005% F.S. / 10ºC |
| Temp. effect on zero | 0.005% F.S. / 10ºC |
| Recommended excitation | 10V |
| Maximum excitation | 18V |
| Compensated temp. range | - 10~60ºC |
| Operation temp. range | - 20~80ºC |
| Safe overload | 250lbs(≤100lbs) 200% F.S.(≥200lbs) |
| Cable size | 300 mm(4 wires) |
| Protection class | IP65 |
| Standard | carton |
| Model | F2819 |
| Technical parameters | Specifications |
| Input | Red(+) Black(-); |
| Output | Green(+) White(-); |
