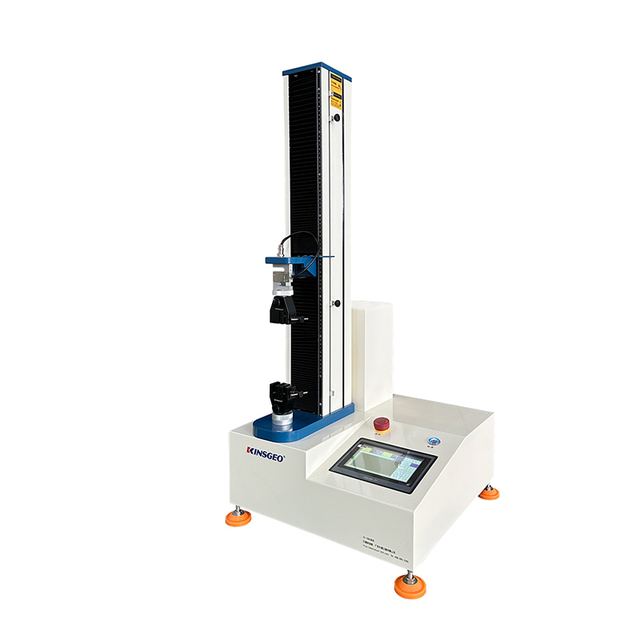

Peel Strength Tester Adhesive Tape Peel Testing Machine
Model KJ-1065C
Overview
Peel Strength Tester Adhesive Tape Peel Testing Machine supplied by GUANGDONG KEJIAN INSTRUMENT CO.,LTD. Listed under Adhesives. Key published specifications: Certification ISO,CE etc.; Model KJ-1065; Application Adhensive Tape，Tape Peeling; Standard ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | ISO,CE etc. |
|---|---|
| Model | KJ-1065 |
| Application | Adhensive Tape，Tape Peeling |
| Standard | ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7 |
| Weight | 40kg |
| Range Of Speed | 0.01~500mm/min |
| Power Supply | 1PH, AC220V, 50/60Hz |
| Capacity choice | 1,2,5,10kg optional |
| Stroke | 650mm(excluding clamp) |
| Effective testing space | 1200mmMAX |
| Operation method | Windows operation |
| Accessories | computer, printer, system operation manual |
| Optional accessories | stretcher, air clamp |
| Dimention | (W×D×H)58×58×125cm |
| Power | AC220V, 50/60Hz |
| Design standard | ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7 |
| Force protection | system setting |
| Control range of temperature | RT+10℃~200℃ （Customizable） |
| Controller | Programmable LCD touch screen |
| Capacity | 1 , 2 , 5 , 10 kg |
| Accuracy | class 1 (0.5 optional) |
| Measuring Range | 0-100N |
| Size (H*W*D) cm | 55*30*35cm |
