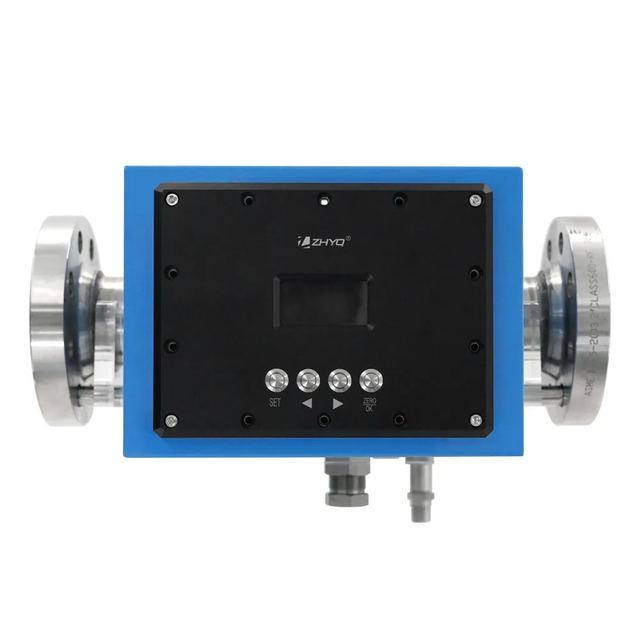

Oil / Gas / Water Three Phase Multi-parameter Oil Well Flowmeter
Model PT6004
Overview
Oil / Gas / Water Three Phase Multi-parameter Oil Well Flowmeter supplied by Shanghai Zhaohui Pressure Apparstus Co.,Ltd. Key published specifications: Medium being measured Oil ; moisture ; gas; Flow range Gas; 0～7500Nm³/h; Measurement range Differential pressure; 0～250KPa; Comprehensive accuracy Static pressure; ±0.25%FS. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Medium being measured | Oil ; moisture ; gas |
|---|---|
| Flow range | Gas; 0～7500Nm³/h |
| Measurement range | Differential pressure; 0～250KPa |
| Comprehensive accuracy | Static pressure; ±0.25%FS |
| Nonlinearity | 0.2%FS |
| Reliability | 0.2%FS |
| Signal output | RS485 |
| Supply voltage | 9～36V DC ; Moisture meter; 21～26V DC |
| Start-up time | ＜5s |
| Collection frequency | 200Hz |
| Communication protocol | Modbus RTU |
| Overload | 150%FS |
| Wetted material | SS304 |
| Protection grade | IP65 |
| Explosion-proof | Yes |
| Process connection | Flange |
| Throttling device type | Nozzle |
