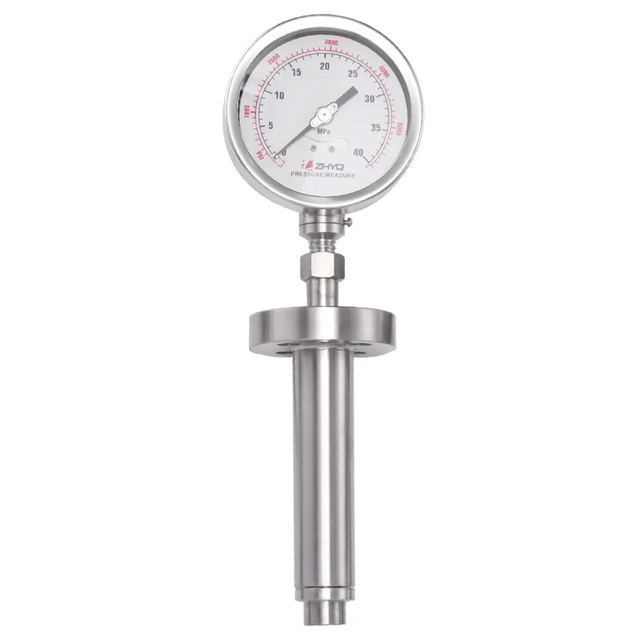

Flange Melt Pressure Gauge
Model PT124Y-617
Overview
Flange Melt Pressure Gauge supplied by Shanghai Zhaohui Pressure Apparstus Co.,Ltd. Key published specifications: Pressure range 0~1MPa~10MPa; Overload 150%FS; Display mode Pointer; Pointer accuracy ±1.6%FS ; ±2.5%FS. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Pressure range | 0~1MPa~10MPa |
|---|---|
| Overload | 150%FS |
| Display mode | Pointer |
| Pointer accuracy | ±1.6%FS ; ±2.5%FS |
| Dial diameter | 100mm |
| Operating temperature | Max 400℃ |
| Measuring diaphragm type | Corrugated diaphragm |
| Diaphragm diameter | 23.5mm |
| Process connection | Flange; DN50 ; DN125 ; DN205(customizable) |
