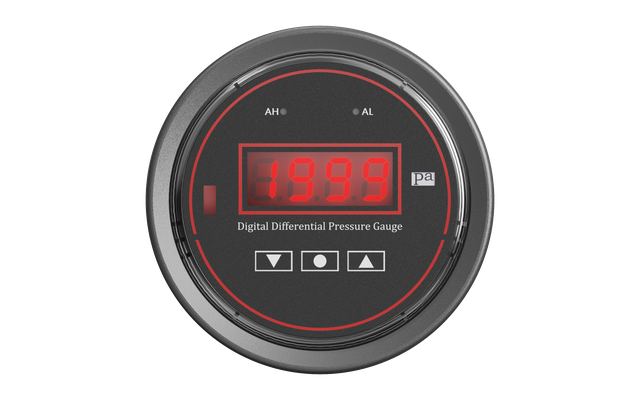

Sailsors A3 Digital DP Switch / Gauge / Transmitter
Overview
Sailsors A3 Digital DP Switch / Gauge / Transmitter supplied by Sailsors. Listed under Pressure Gauges. Key published specifications: Accuracy ±0.5% FS (Linearity + Hysteresis + Repeatability); Damping 1–30 s adjustable; Operating Temperature −10 °C to +50 °C; Output Signal 4–20 mA. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Accuracy | ±0.5% FS (Linearity + Hysteresis + Repeatability) |
|---|---|
| Damping | 1–30 s adjustable |
| Operating Temperature | −10 °C to +50 °C |
| Output Signal | 4–20 mA |
| Wiring | 2-wire |
| Power Supply | 12–22 VDC, 50/60 Hz |
| Switch Rating | 10A @ 120VAC, 6A @ 240VAC |
| Electrical Connection | Screw terminals |
| Housing Material | ABS |
| Process Connection Material | Brass or 316SS |
| Dial Size | 4″ (101.6 mm) |
| Setpoint Adjustment | Buttons on front panel |
| Model | Range (Pa) |
| 4–20 mA Power | 2-wire loop powered |
| Differential Pressure | Air and non-corrosive gases |
| Gauge / Absolute Pressure | Non-corrosive gases and liquids |
