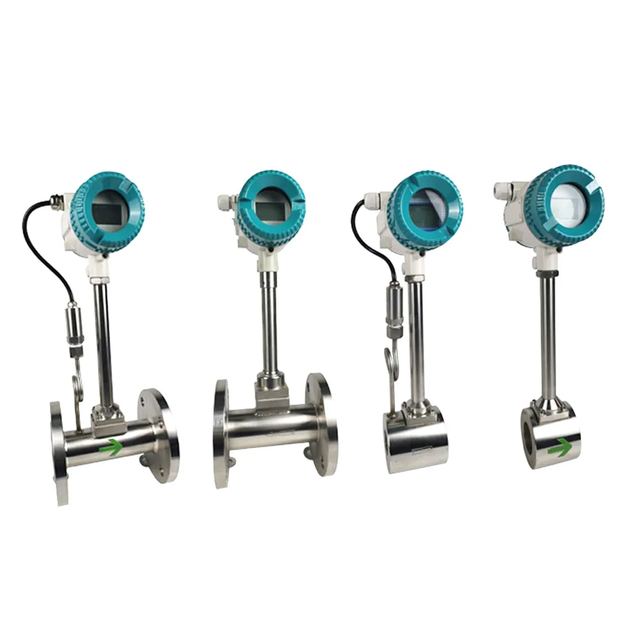

Vortex Flowmeter
Model PT124B-503
Overview
Vortex Flowmeter supplied by Shanghai Zhaohui Pressure Apparstus Co.,Ltd. Key published specifications: Nominal diameter(mm) DN15～DN300 (Claming connection); Measuring medium Liquid; Gas; Steam; Measuring range Liquid; 0.35~7.0m/s; Gas; 5.0~60.0m/s; Steam; 6.0~70.0m/s; Pressure（MPa） 1.6、2.5、4.0、6.3 (customizable). Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Nominal diameter(mm) | DN15～DN300 (Claming connection) |
|---|---|
| Measuring medium | Liquid; Gas; Steam |
| Measuring range | Liquid; 0.35~7.0m/s; Gas; 5.0~60.0m/s; Steam; 6.0~70.0m/s |
| Pressure（MPa） | 1.6、2.5、4.0、6.3 (customizable) |
| Medium temperature | Standard temp; -40～+150℃ |
| Material | SS304 ; SS316 ; SS316L (customizable) |
| Accuray | 1.0%FS ; 1.5%FS |
| Power supply | 12VDC/24VDC ; Battery |
| Display type | LCD display |
| Telecommunication | HART ; Modbus RS485 |
| Signal output | Three wires ; Two wires(4-20mA) |
| Protection | IP65 ; IP67 ; IP68 |
| Electrical connection | M20*1.5 ; 1/2NPT |
| Air pressure | 86 ～106kPa |
