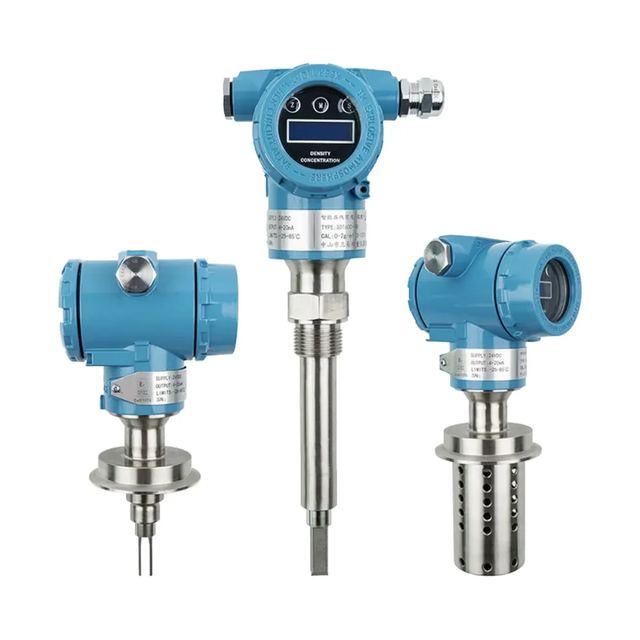

Inline Tuning Fork Densitometer
Model PT124B-604
Overview
Inline Tuning Fork Densitometer supplied by Shanghai Zhaohui Pressure Apparstus Co.,Ltd. Key published specifications: Process pressure effect (corrected) Ignore; Process temperature Standard: -25°C～+120°C (Customized: -25°C～+150°C); Ambient temperature -25°C～85°C; Temperature accuracy 0.5°C. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Process pressure effect (corrected) | Ignore |
|---|---|
| Process temperature | Standard: -25°C～+120°C (Customized: -25°C～+150°C) |
| Ambient temperature | -25°C～85°C |
| Temperature accuracy | 0.5°C |
| Built-in temperature sensor | Temperature chip |
| Housing | IP67, Aluminum Alloy |
| Test pressure | Tested at 1.5 times the max working pressure |
| Process connection type | Flange/Clamp/Thread |
| Output | Four-wire, 4-20mA, RS485 or Hart protocol |
| Electrical interface | M20*l. 5 |
| Standard | -25°C～+120°C (Customized: -25°C～+150°C) |
