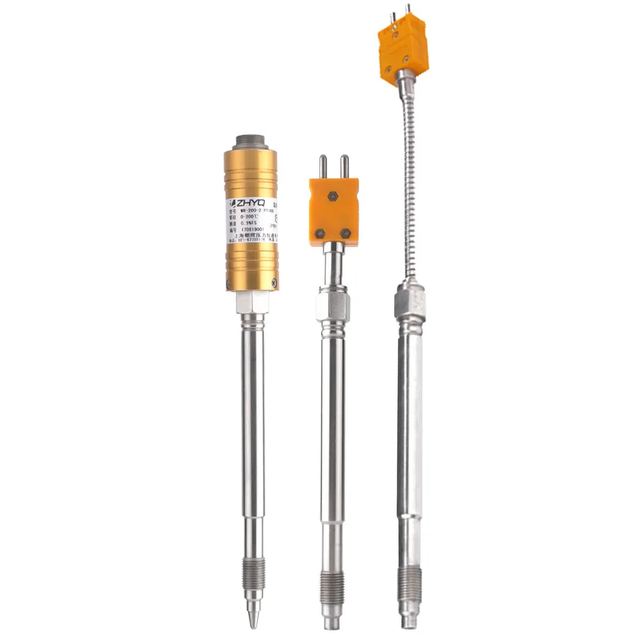

Melt Thermocouple
Model WR-200
Overview
Melt Thermocouple supplied by Shanghai Zhaohui Pressure Apparstus Co.,Ltd. Key published specifications: Temperature measuring element PT100 ; J ; K ; E (optional); Accruacy 0.5%FS ; 1%FS; Signal output 4-20mA（2-wires） ; 3-wires ; 4-wires; Protection tube material SS304 ; SS316L ; PTFE. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Temperature measuring element | PT100 ; J ; K ; E (optional) |
|---|---|
| Accruacy | 0.5%FS ; 1%FS |
| Signal output | 4-20mA（2-wires） ; 3-wires ; 4-wires |
| Protection tube material | SS304 ; SS316L ; PTFE |
| Capillary length | 200 ; 460mm |
| Length of rod | 152 ; 200 ; 250 ; 300mm |
| Process connection | 1/2-20UNF ; M14*1.5 |
