Overview

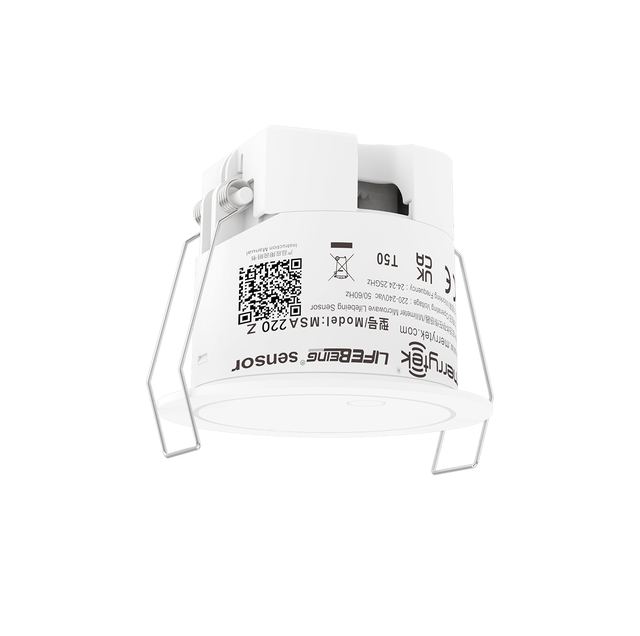

MSA220 Z supplied by Shenzhen Merrytek Technology Co. Ltd. Listed under Proximity Sensors. Key published specifications: Rated Voltage 220V AC; Working Current 50mA max; Working Power ≤1W 230V AC; Transmitting Working Frequency 24GHz-24.25GHz ISM Band.. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Rated Voltage	220V AC
Working Current	50mA max
Working Power	≤1W 230V AC
Transmitting Working Frequency	24GHz-24.25GHz ISM Band.
Transmitting Power	5mW Max.
Detection Area	Grade1-Grade12(set by APP)
Hold Time	30s-30min(set by APP)
Illuminance	5-1200Lux
Mounting Height	2.5-4.0m typical value: 3m
3dB Beam Angle	100°(XZ field)
Environmental Requirement	Compliant to RoHS
IP Rating	IP20
International standard	24Ghz ISM Band Millimeter Wave Radar
Presence detection diameter	1-4m Max
Minor Moving detection diameter	1-4m Max
Moving detection diameter	1-4m Max
Dimension	φ65×54.5mm
