Overview

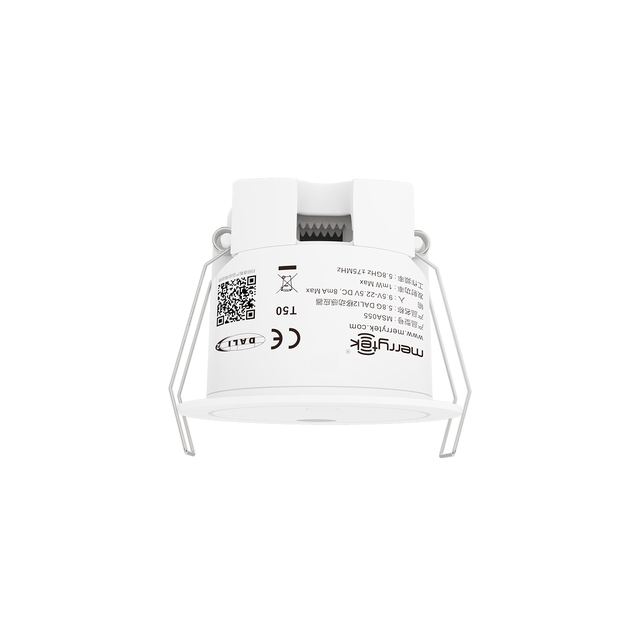

MSA055 supplied by Shenzhen Merrytek Technology Co. Ltd. Listed under Proximity Sensors. Key published specifications: Working Current 13±1mA; Radar transmit power 5mW Max; Detection Sensitivity MH10 remote setting：100% 75% 50% 25%; Hold Time 5s(fixed)+1s -30min(DALI master setting). Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Working Current	13±1mA
Radar transmit power	5mW Max
Detection Sensitivity	MH10 remote setting：100% 75% 50% 25%
Hold Time	5s(fixed)+1s -30min(DALI master setting)
Daylight Sensor	0-1200Lux
Remote control	Available
Mounting height	2.5-4.0m typical value:3m
3dB beam angle	90°（horizontal）
Environmental Requirement	Compliant to RoHS
IP Rating	IP20
Dimension	φ65×49.5mm
