Overview

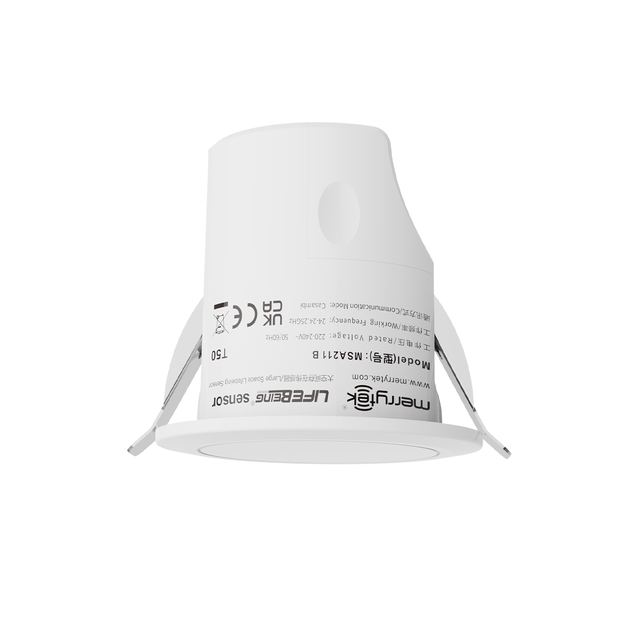

MSA211 B supplied by Shenzhen Merrytek Technology Co. Ltd. Listed under Proximity Sensors. Key published specifications: Rated voltage 220V AC; Working Current 50mA max; Working Power ≤1W 220V AC; Transmitting Power 5mW Max.. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Rated voltage	220V AC
Working Current	50mA max
Working Power	≤1W 220V AC
Transmitting Power	5mW Max.
Detection Area	APP adjust：10%-100%
Daylight	0-1200Lux
Detecting Range (100% detection area, radius)	Presence/Minor motion/Motion（3m installation）:2.5-4m
Remote control	Available
Mounting Height	2.5-4.0m
3db Beam Angle	100° (XZ field)
Environmental Require ment	Compliant to RoHS
IP Rating	IP20
Presence detection diameter	5-7m Max
Minor Motion detection diameter	6-8m Max
Motion detection diameter	6-8m Max
Presence/Minor motion/Motion（3m installation）	2.5-4m
Dimension	φ90x80mm
