Overview

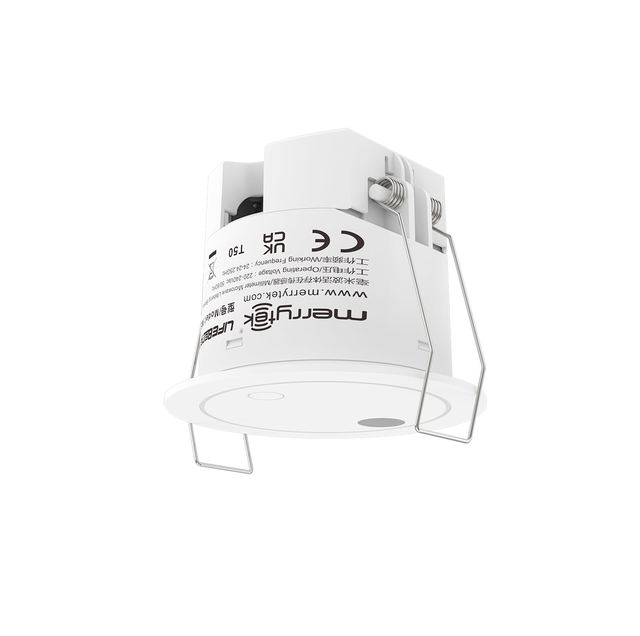

MSA201 Z supplied by Shenzhen Merrytek Technology Co. Ltd. Listed under Proximity Sensors. Key published specifications: Rated voltage 220V AC; Working Current 80mA max; Working Power ≤1.5W 230V AC; Transmitting Power 5mW Max.. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Rated voltage	220V AC
Working Current	80mA max
Working Power	≤1.5W 230V AC
Transmitting Power	5mW Max.
Detection Area	APP setting: 0-4m（0.5m per tapping）
Hold Time	APP setting: 3-7200s
Remote control	Available(MH18 remote)
Mounting height	2.5-4.0m typical value:3m
Storage Temperature	-25℃~+80℃ Humidity:≤85% (non-condensation)
Environmental Requirement	Compliant to RoHS
IP Rating	IP20
Guarantee	5 year（only for product quality problem）
Major/Minor/Micro Motion detection diameter	7-9m Max
25℃~+80℃ Humidity	≤85% (non-condensation)
Dimension	φ65×49.5mm
Connection	2-pin terminal
