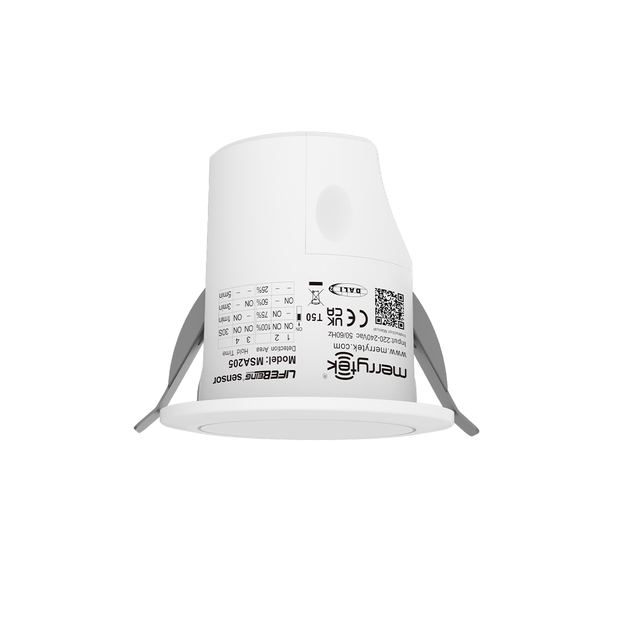

MSA205
Overview
MSA205 supplied by Shenzhen Merrytek Technology Co. Ltd. Listed under Proximity Sensors. Key published specifications: Rated voltage 230V AC; Consumption power ≤1W @230V AC; Communication mode DALI BUS; TX power 3dBmMax. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Rated voltage | 230V AC |
|---|---|
| Consumption power | ≤1W @230V AC |
| Communication mode | DALI BUS |
| TX power | 3dBmMax |
| Daylight lux range | 5-1200Lux |
| Rated mounting height | 2.5-4.0m (Typical height:3m) |
| 3db beam angel | 80°（XZ axis） |
| Environmental certificate | In accordance with EU RoHS |
| IP rate | IP20 |
| Max human presence detection area | 4-6m diameter |
| Max minor motion detection area | 4-6m diameter |
| Max movement motion detection area | 4-6m diameter |
| Movement motion（based on 3m height mounting） | radius 2-3m |
| Minor motion（based on 3m height mounting） | radius 2-3m |
| Human presence（based on 3m height mounting） | radius 2-3m |
| Size | φ105x85mm |
