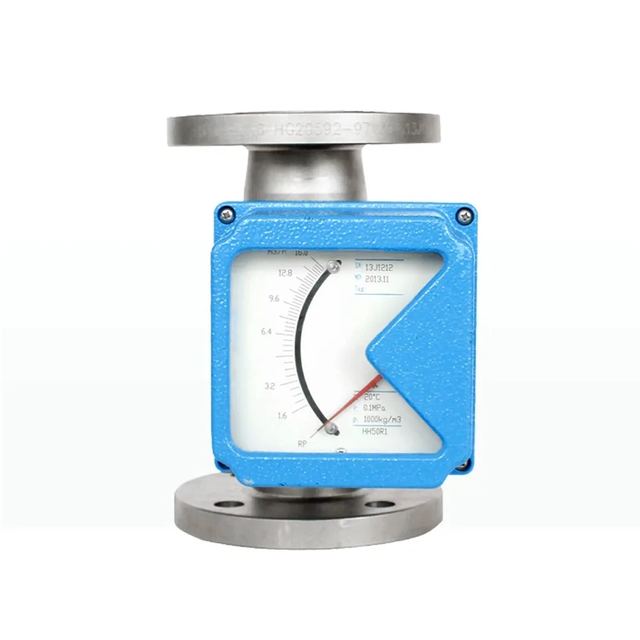

Metal Tube Floater Flowmeter
Model PT124B-504
Overview
Metal Tube Floater Flowmeter supplied by Shanghai Zhaohui Pressure Apparstus Co.,Ltd. Key published specifications: Flow range Water:10～150000l/h ; Gas: 0.5～3000m3/h; Range ratio 10:1 ; 20:1 (Special customization); Accuracy 1.5%FS ; 1.0%FS (Special customization); Operating pressure 4.0MPa (Max 20MPa):DN15, DN25, DN50. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Flow range | Water:10～150000l/h ; Gas: 0.5～3000m3/h |
|---|---|
| Range ratio | 10:1 ; 20:1 (Special customization) |
| Accuracy | 1.5%FS ; 1.0%FS (Special customization) |
| Operating pressure | 4.0MPa (Max 20MPa):DN15, DN25, DN50 |
| Medium temperature | Standard:-30℃～+120℃ ; high temperature: 120℃～350℃ |
| Power Supply | 24VDC (12~36VDC) ; 220VAC |
| Output load | 500Ω(at 24V power supply) |
| Ambient temperature | Local type:-40℃～120℃ ; Remote type: -30℃～60℃ |
| Storage condition | Temperature:-40℃～85℃ ; Humidity: ≤ 85% |
| Electrical Connection | M20*1.5, 1/2 NPT |
| Protection grade | IP65 |
| Medium viscosity | DN15:η<5mPa.s ; DN25: η <250mPa.s ; DN50～DN150: η<300mPa.s |
| Standard | -30℃～+120℃ ; high temperature: 120℃～350℃ |
| Local type | -40℃～120℃ ; Remote type: -30℃～60℃ |
| Temperature | -40℃～85℃ ; Humidity: ≤ 85% |
