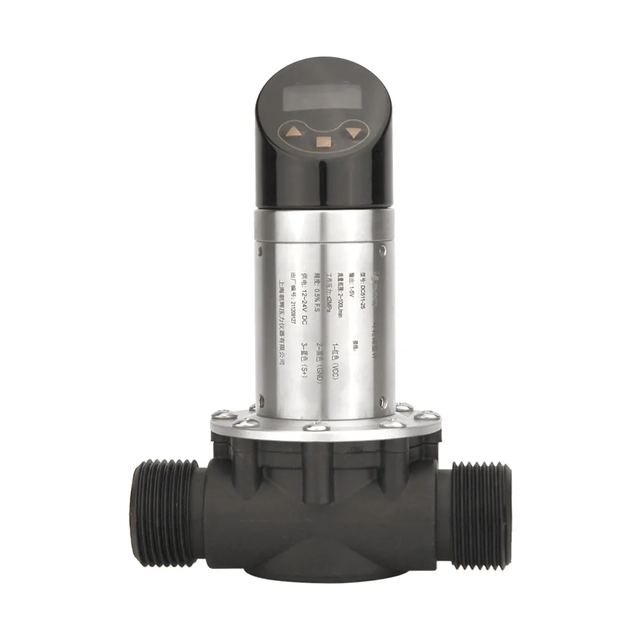

Low Pressure Impeller Flowmeter
Model DC511-25
Overview
Low Pressure Impeller Flowmeter supplied by Shanghai Zhaohui Pressure Apparstus Co.,Ltd. Key published specifications: Flow range 2~100L/min; Accuracy 0.5%FS; Power Supply 12~24V; Output Singal 4~20mA ; 0-5V ; RS485. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Flow range | 2~100L/min |
|---|---|
| Accuracy | 0.5%FS |
| Power Supply | 12~24V |
| Output Singal | 4~20mA ; 0-5V ; RS485 |
| Tube inner diameter | 20mm |
| Woking Pressure | ≤2.0MPa |
| Process connection | G1 |
| Display | OLED Screen |
| Protection grade | IP65 |
