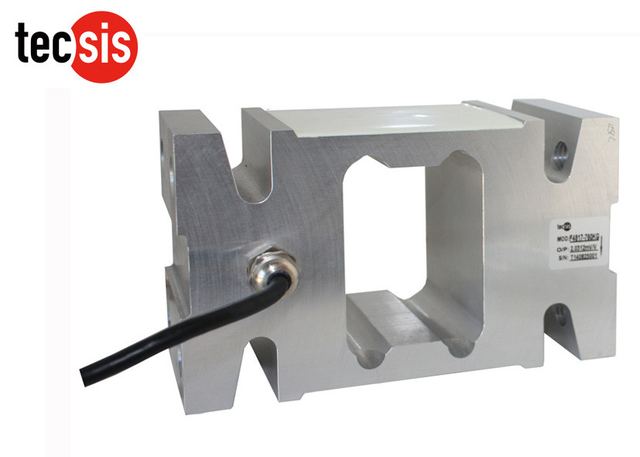

Large Capacity High Precision Load Cell Weight Measurement Water Proof

Model F4817

Large Capacity High Precision Load Cell Weight Measurement Water Proof

Overview

Large Capacity High Precision Load Cell Weight Measurement Water Proof, listed by Shenzhen) Sensors Co., Ltd in Shenzhen, Guangdong. Published figures include type Single Point Load Cell, material Aluminum Alloy and capacity 100kg~2T.

Technical specifications

TypeSingle Point Load Cell
MaterialAluminum Alloy
Capacity100kg~2T
Oem/OdmAcceptable
Protection ClassIP65
Rated output2.0±10%mV/V
Zero balance±2% F.S.
Non-linearity0.02% F.S.
Hysteresis0.02% F.S.
Repeatability0.02% F.S.
Creep (30min)0.02% F.S.
Temp. effect on output0.025% F.S. / 10ºC
Temp. effect on zero0.025% F.S. / 10ºC
Insulation≥5000MΩ/ 100VDC
Recommended excitation10V
Maximum excitation15V
Compensated temp. range- 10~40ºC
Operation temp. range- 20~60ºC
Safe overload150% F.S.
Ultimate overload200% F.S.
Cable sizeØ5×6000 mm
Platform size800×1000mm(100~600kg) 1200×1200mm(750~2000kg)
Standardcarton
ModelF4817
Technical parametersSpecifications
InputRed(+) Black(-);
