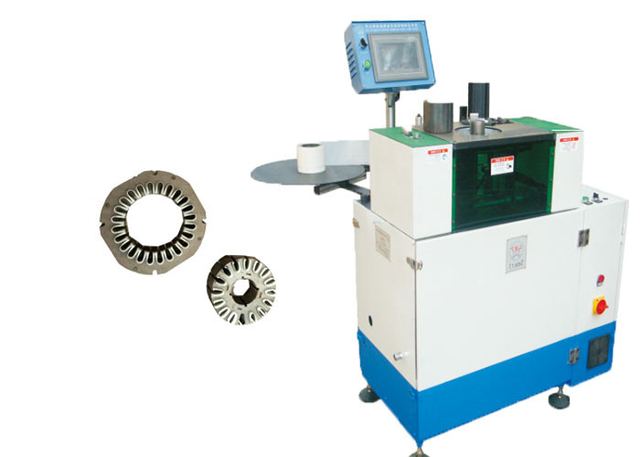

ISO / SGS Audit Automatic Motor Winding Machine for Simple Wedges
Model SC80
Overview
ISO / SGS Audit Automatic Motor Winding Machine for Simple Wedges supplied by SMT Intelligent Device Manufacturing (Zhejiang) Co., Ltd. Key published specifications: Stator I.D. 40-80mm; Stator O.D. ≤160mm; Stack Height of Stator ≤60mm; Width of Edge Folded 2.5-4mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Stator I.D. | 40-80mm |
|---|---|
| Stator O.D. | ≤160mm |
| Stack Height of Stator | ≤60mm |
| Width of Edge Folded | 2.5-4mm |
| Feeding Perimeter | ≥12mm |
| Material's thickness | ≤0.35mm |
| Power Supply | 380V/50/60Hz 0.75Kw |
| Air Pressure | ≥0.5MPa |
| Machine dimension | (L)1150*(W)1000*(H)1500mm |
| Height Of Edge Folded | 3-10mm |
| Heating System | Electric |
| Certification | ISO/SGS Audit |
