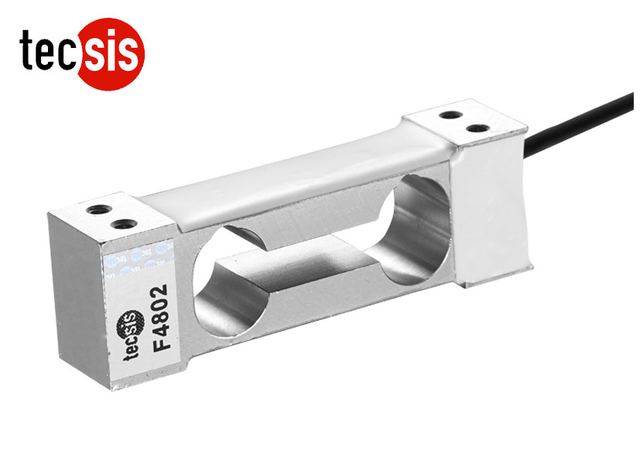

High Capacity Transducer Scale Load Cell Single Point
Model F4802
Overview
High Capacity Transducer Scale Load Cell Single Point supplied by Shenzhen) Sensors Co., Ltd. Key published specifications: Type Single Point Load Cell; Material Aluminum Alloy; Capacity 0.3kg~10kg; Oem/Odm Acceptable. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Type | Single Point Load Cell |
|---|---|
| Material | Aluminum Alloy |
| Capacity | 0.3kg~10kg |
| Oem/Odm | Acceptable |
| Protection Class | IP65 |
| Rated output | 1.0±10%mV/V (0.3~0.5kg) 2.0±10%mV/V (1~10kg) |
| Zero balance | ±2% F.S. |
| Non-linearity | 0.02% F.S. |
| Hysteresis | 0.02% F.S. |
| Repeatability | 0.02% F.S. |
| Creep (30min) | 0.02% F.S. |
| Temp. effect on output | 0.025% F.S. / 10ºC |
| Temp. effect on zero | 0.025% F.S. / 10ºC |
| Insulation | ≥5000MΩ/ 100VDC |
| Recommended excitation | 10V |
| Maximum excitation | 15V |
| Compensated temp. range | - 10~40ºC |
| Operation temp. range | - 20~60ºC |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Cable size | Ø3×450 mm |
| Platform size | 200×200mm |
| Standard | carton |
| Model | F4802 |
| Technical parameters | Specifications |
| Input | Red(+) Black(-); |
