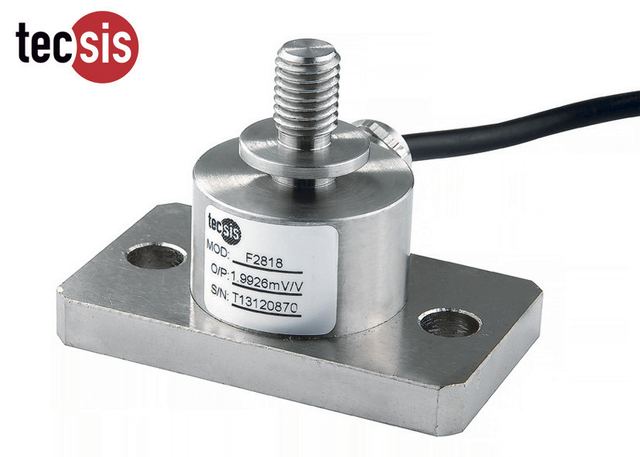

Force Transducer Tension Compression Load Cell Rod End 1KN 2KN 5KN
Model F2818
Overview
Force Transducer Tension Compression Load Cell Rod End 1KN 2KN 5KN supplied by Shenzhen) Sensors Co., Ltd. Key published specifications: Structure Compact; Material 17-4PH Stainless Steel; Capacity 1/2/5KN; Oem/Odm Acceptable. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Structure | Compact |
|---|---|
| Material | 17-4PH Stainless Steel |
| Capacity | 1/2/5KN |
| Oem/Odm | Acceptable |
| Rated output | 1.5±10%mV/V |
| Zero balance | ±2% F.S. |
| Non-linearity | ≤0.5% F.S. |
| Hysteresis | 0.1% F.S. |
| Repeatability | 0.1% F.S. |
| Creep (30min) | 0.1% F.S. |
| Temp. effect on output | 0.05% F.S. / 10ºC |
| Temp. effect on zero | 0.05% F.S. / 10ºC |
| Insulation | ≥5000MΩ / 50VDC |
| Recommended excitation | 5V |
| Maximum excitation | 15V |
| Compensated temp. range | - 20~60ºC |
| Operation temp. range | - 40~80ºC |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Cable size | Ø5*1500 mm |
| Protection class | IP66 |
| Standard | carton |
| Model | F2818 |
| Technical parameters | Specifications |
| Input | Red(+) Black(-); |
| Output | Green(+) White(-); |
