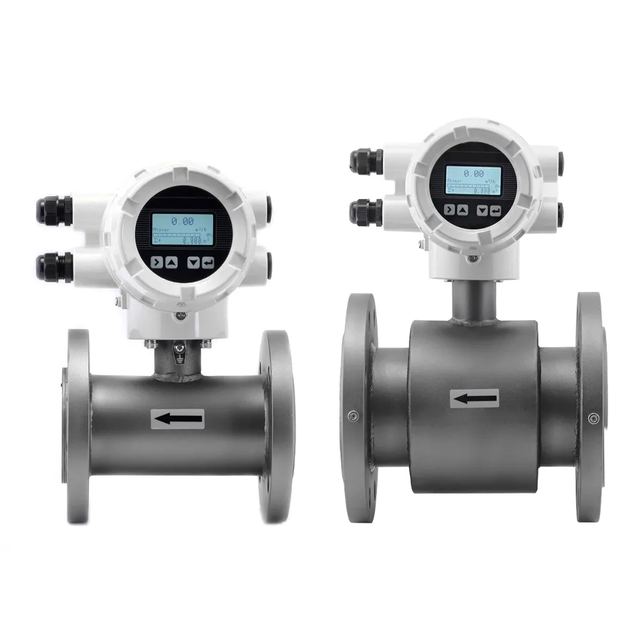

Electromagnetic Flowmeter
Model PT124B-501
Overview
Electromagnetic Flowmeter supplied by Shanghai Zhaohui Pressure Apparstus Co.,Ltd. Key published specifications: Max flow rate 15m/s; Fluid conductivity ≥5uS/cm; Accuracy ±0.2% of displayed value, ±0.5% of displayed value; Nominal pressure 10.0MPa、6.3MPa、4.0MPa、 2.5MPa、1.6MPa、1.0MPa、0.6MPa. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Max flow rate | 15m/s |
|---|---|
| Fluid conductivity | ≥5uS/cm |
| Accuracy | ±0.2% of displayed value, ±0.5% of displayed value |
| Nominal pressure | 10.0MPa、6.3MPa、4.0MPa、 2.5MPa、1.6MPa、1.0MPa、0.6MPa |
| Ambient temperature | Sensor; -25°C~+60°C ; Converter; -10°C~+60°C |
| Signal electrode type | Fixed ; scraper ; detachable |
| Connection flange material | Carbon steel ; SS304 ; SS316 ; SS316L |
| Grounding ring material | Stainless steel 1Cr18Ni9Ti |
| Electrical interface | M18*1.5 ; M20*1.5 |
| Power consumption | ≤20W |
