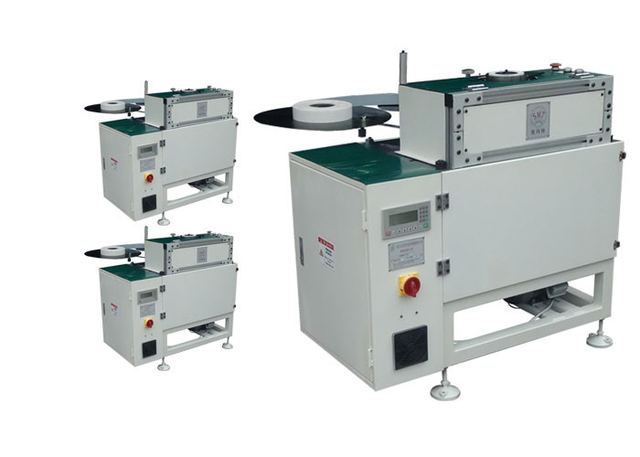

Armature Insulation Paper Insertion Inserting Machine SMT
Model C100
Overview
Armature Insulation Paper Insertion Inserting Machine SMT supplied by SMT Intelligent Device Manufacturing (Zhejiang) Co., Ltd. Key published specifications: Core Length 10-90mm; Stator I.D 20-80mm; Stator O.D ≤140mm; Height of edge folded 2-4mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Core Length | 10-90mm |
|---|---|
| Stator I.D | 20-80mm |
| Stator O.D | ≤140mm |
| Height of edge folded | 2-4mm |
| Insulation paper’s thickness | ≤0.35mm |
| Efficiency | 0.5s/s |
| Power supply | 380V, 50/60Hz, 0.75kW |
| Weight | 411kg |
| Dimension | 1100*650*1000mm |
| Automatic Grade | Semiautomatic |
| Certification | ISO/SGS Audit |
