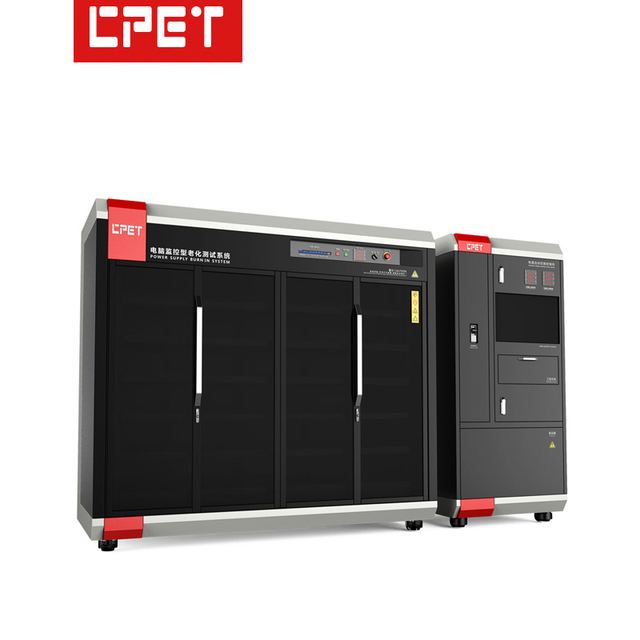

48CH Multi-Zone Burn-In Chamber with Programmable Aging Profiles for Industrial Server Power Supply Testing

Model CP-3042

48CH Multi-Zone Burn-In Chamber with Programmable Aging Profiles for Industrial Server Power Supply Testing

Overview

48CH Multi-Zone Burn-In Chamber with Programmable Aging Profiles for Industrial Server Power Supply Testing, listed by Shenzhen CPET Electronics Co., Ltd in Shenzhen, Guangdong. Published figures include power per channel 600W/CH, load channels 48CH and thermal zones 4 Independent Zones.

Technical specifications

Power Per Channel600W/CH
Load Channels48CH
Thermal Zones4 Independent Zones
Temperature Accuracy±0.3°C
Load Voltage Range2-450V DC
Load Current Range0.05-20A/CH
Programmable StepsUp To 20 Per Profile
Data InterfaceLAN, RS485, USB
Load Precision±(1%+0.1%FS)
Temperature RangeAmbient+10°C to 80°C
Temperature Uniformity±1.0°C within zone
Load ModeCC+CV+CR+CP Mode
Product Zone Layers6 (3 thermal zones, 2 layers per zone)
Layer Height200mm
Layer Width500mm
Structure MaterialCold-rolled sheet with thermal insulation
Control SystemIndustrial PC with multi-zone monitoring
Data Refresh Rate1 second
Report FormatCSV, PDF (CPK/yield rate/time distribution)
External Dimensions2400*1300*2000mm / custom design available
CertificationCE, ROHS, ISO 9001
