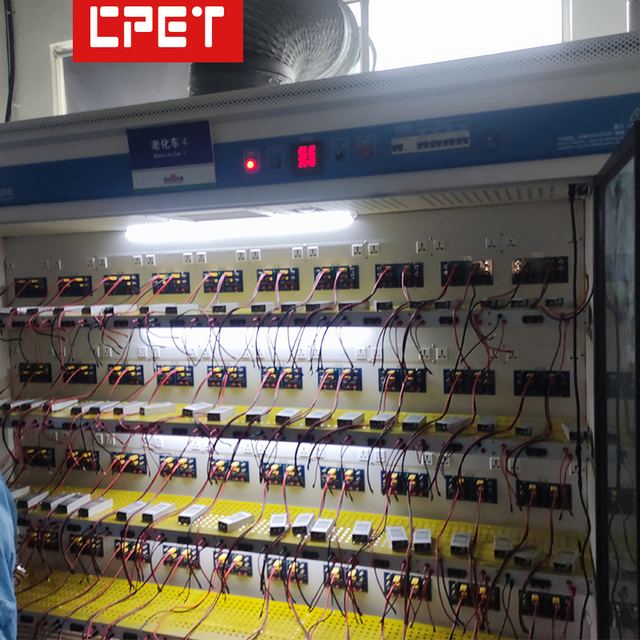

400W/CH 96CH Energy-Saving DC Load Burn-In Chamber 3-60V Adapter LED Driver Aging Test Equipment
Model CP-3033
Overview
400W/CH 96CH Energy-Saving DC Load Burn-In Chamber 3-60V Adapter LED Driver Aging Test Equipment supplied by Shenzhen CPET Electronics Co., Ltd. Key published specifications: Power Of Single Channel 400W/CH; Quantity Of Load Channels 96CH; Scope Of Load Voltage 3-60V; Scope Of Load Current 0.5-40A/CH. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Power Of Single Channel | 400W/CH |
|---|---|
| Quantity Of Load Channels | 96CH |
| Scope Of Load Voltage | 3-60V |
| Scope Of Load Current | 0.5-40A/CH |
| Load Mode | CC+CV+CR Mode |
| External Dimension (L*W*H) | 2050*1000*1900/custom Design |
| Load precision | ±(2%+0.5%FS) |
| Temperature control | Ambient to 60°C |
| Structure material | Cold-rolled sheet, precision fabricated |
| Main control mode | PC-based burn-in monitoring software |
| UUT input interface | Multi-purpose socket/speaker wire clip/custom |
| UUT output interface | Fixture boards (various specs)/custom design |
| External dimension | 2050*1000*1900mm / custom design |
| Certification | CE,ROHS |
