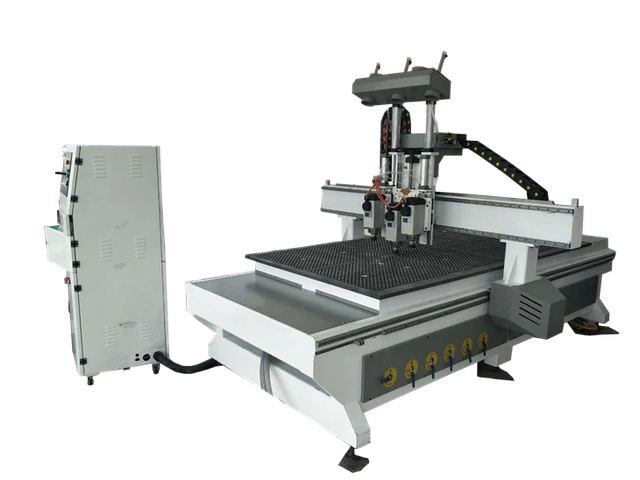

3D Wood Carving Machine
Overview
3D Wood Carving Machine supplied by Shandong Unistar Machinery Co.,Ltd. Key published specifications: X,Y,Z Working area 1300x2500x200mm; X,Y,Z Traveling positioning accuracy ±0.05mm; X,Y,Z Repositioning accuracy ±0.05mm; Table Surface vacuum table. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| X,Y,Z Working area | 1300x2500x200mm |
|---|---|
| X,Y,Z Traveling positioning accuracy | ±0.05mm |
| X,Y,Z Repositioning accuracy | ±0.05mm |
| Table Surface | vacuum table |
| X, Y axis transmission | Rack and pinion gear |
| Spindle power | HQD Air-cooling 5.5kw spindle |
| Spindle rotating speed | 0-24000RPM |
| Drive and motor | stepper motor and servo |
| Operating system | NK-105G3/NK300 control system |
| Frame | Square pipe welded structure |
| Rail configuration | 25 square rail |
| Max traveling speed | 25000mm/min |
| Max working speed | 15000mm/min |
| Working voltage | AC380V ,50Hz ,3PH |
| Command language | G code, mmg, PLT, HPG |
| Software compatibility | Type3,Wentai,Artcut |
