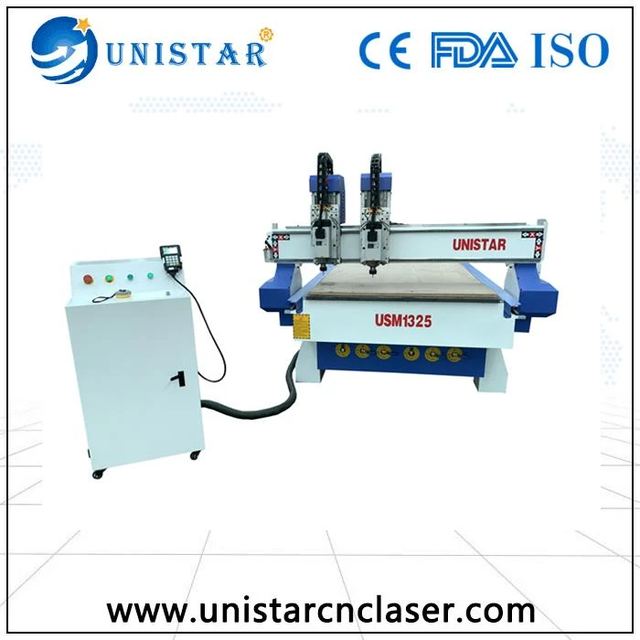

3d Router Machine
Overview
3d Router Machine supplied by Shandong Unistar Machinery Co.,Ltd. Key published specifications: X, Y, Z Axis working area 1300 mm*2500 mm*120 mm; Spindle power 9 kw HQD air cooling spindle *2; Operation system Rich-Auto DSP A11 control system; Motor and drivers Hybrid Servo motor and driver. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| X, Y, Z Axis working area | 1300 mm*2500 mm*120 mm |
|---|---|
| Spindle power | 9 kw HQD air cooling spindle *2 |
| Operation system | Rich-Auto DSP A11 control system |
| Motor and drivers | Hybrid Servo motor and driver |
| Table Type | 4mm Plastic Vacuum Working table |
| Rail way | Taiwan Linear Square Rail guide |
| Transmission | X,Y Rack and pinion |
| Air pump | With |
| Max. Spindle speed | 24000r/min |
| Max. traveling speed | 25m/s |
| Max. working Speed | 18m/s |
| Processing Accuracy | ±0.025mm |
| Reposition Accuracy | ≤0.025mm |
| Command language | HPGL, G code |
| Working voltage | AC380V /50HZ |
| Interface | USB |
| Command | G code*.u00*.mmg*plt |
