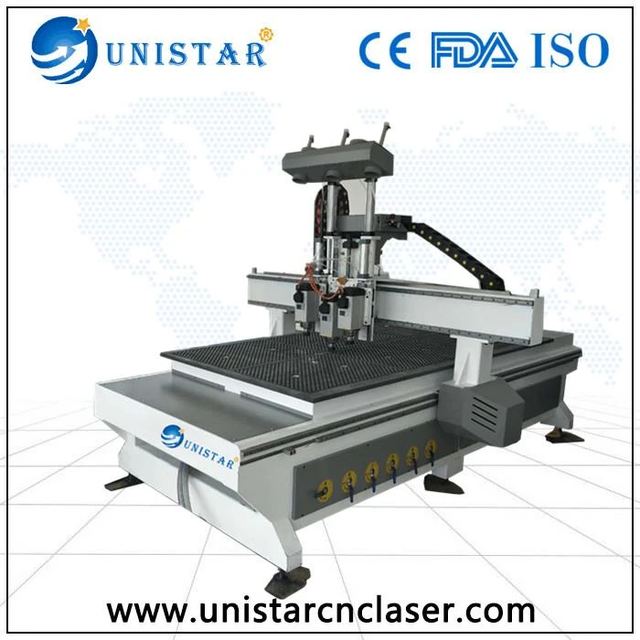

Three Axis CNC Router With Three Process
Overview
Three Axis CNC Router With Three Process supplied by Shandong Unistar Machinery Co.,Ltd. Key published specifications: X, Y, Z Axis working area 1300mm*2500mm*200mm; X Y transmission Rack and pinion; Z Transmission Ball Screws; Spindle power 4.5kw air cooling*3. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| X, Y, Z Axis working area | 1300mm*2500mm*200mm |
|---|---|
| X Y transmission | Rack and pinion |
| Z Transmission | Ball Screws |
| Spindle power | 4.5kw air cooling*3 |
| Max Spindle speed | 24000r/min |
| Max traveling speed | 25m/s |
| Max. working Speed | 18m/s |
| Processing Accuracy | ±0.025mm |
| Reposition Accuracy | ≤0.025mm |
| Motor and drivers | Stepper motors and drivers*4 |
| Command language | HPGL, G code |
| Operation system | NC--studio |
| Working voltage | AC380V /50HZ |
| Interface | USB |
| Command | G code*.u00*.mmg*plt |
