CNC Router Parts
Overview

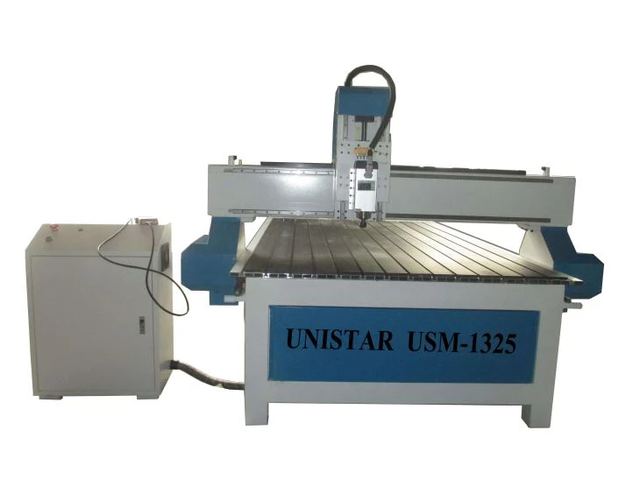

CNC Router Parts supplied by Shandong Unistar Machinery Co.,Ltd. Key published specifications: X,Y,Z Working Area 1300x2500x250mm; Table Surface T-Slot Table; Max. Traveling speed 25000mm/min; Max. Working speed 15000mm/min. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| X,Y,Z Working Area | 1300x2500x250mm |
|---|---|
| Table Surface | T-Slot Table |
| Max. Traveling speed | 25000mm/min |
| Max. Working speed | 15000mm/min |
| Rail Configuration | 20 square rail |
| Spindle Power | Air-cooling 3 kw spindle |
| Spindle Rotating Speed | 0-24000RPM |
| Drive and Motors | Stepper System |
| Working Voltage | AC380V ,50Hz ,3PH |
| Operating System | NC studio system |
