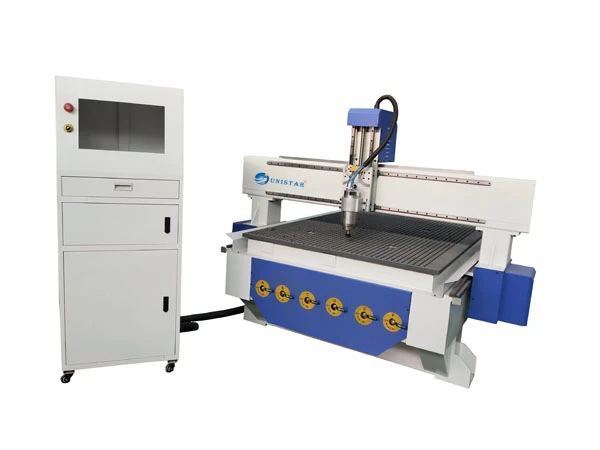

Cnc Wood Router
Overview
Cnc Wood Router supplied by Shandong Unistar Machinery Co.,Ltd. Key published specifications: working area 1300*2500*200mm; spindle 3kw water cooling; Spindle rotating speed 0-18000rpm/min; contronal system NC studio. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| working area | 1300*2500*200mm |
|---|---|
| spindle | 3kw water cooling |
| Spindle rotating speed | 0-18000rpm/min |
| contronal system | NC studio |
| moter and driver | stepper motor and drivers |
| inverter | shanghai fuling inveter |
| Max travelling | 3000mm/min |
| Max working speed | 1500mm/min |
| Voltage | 380V/50/60hz |
| Interface | computer |
| command code | G code |
| Oiling system | Manual |
| Air pump | with |
| dust colllect system | double bottle collect system |
