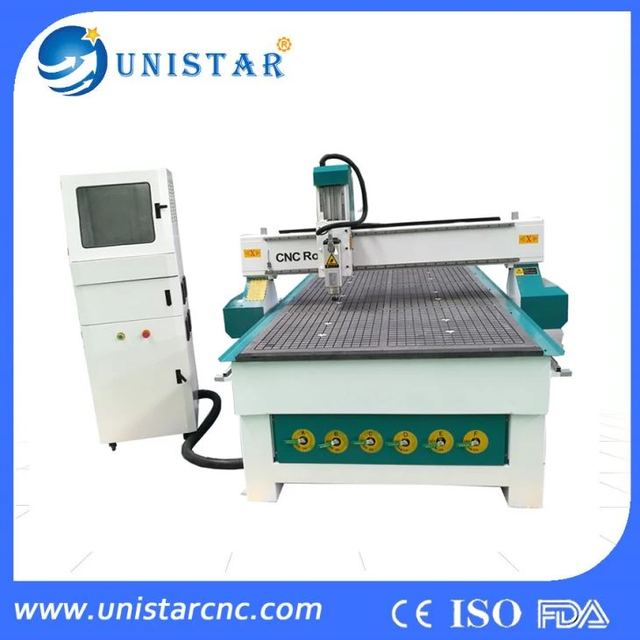

Craftsman CNC Router
Overview
Craftsman CNC Router supplied by Shandong Unistar Machinery Co.,Ltd. Key published specifications: X,Y,Z Working Area 1300x2500x250mm; X,Y,Z Traveling Positioning Accuracy ±0.05mm; Spindle Power 5.5KW HQD Air-cooling spindle; Spindle Rotating Speed 0-24000RPM. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| X,Y,Z Working Area | 1300x2500x250mm |
|---|---|
| X,Y,Z Traveling Positioning Accuracy | ±0.05mm |
| Spindle Power | 5.5KW HQD Air-cooling spindle |
| Spindle Rotating Speed | 0-24000RPM |
| Drive | YAKO System |
| Operating System | NC-studio control system |
| Table Surface | Vacuum Table |
| Frame | Square Pipe Welded Structure |
| X, Y axis transmission | Rack and Pinion gear |
| Z axis transmission | Ball Screw |
| Max. Traveling speed | 25000mm/min |
| Max. Working speed | 15000mm/min |
| Working Voltage | AC380V ,50Hz ,3PH |
| Software Compatibility | Type3,Wentai, Artcut |
