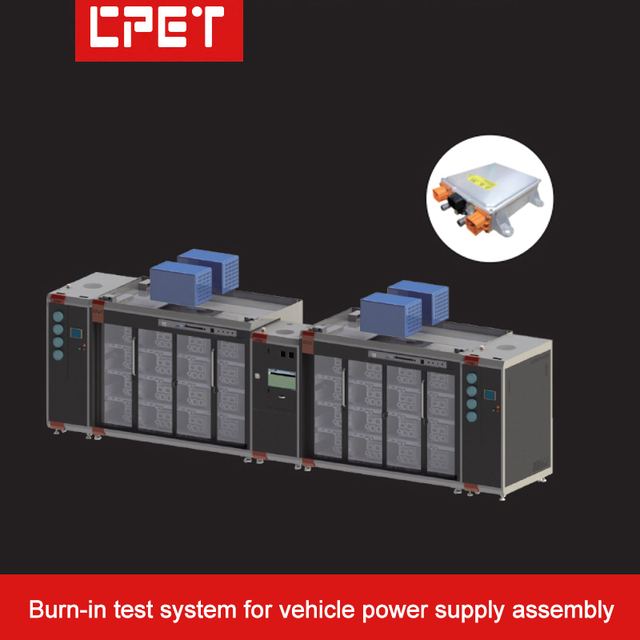

35kW Burn-in Test System with 16 Bits/Cabinet & UL 94V0
Overview
35kW Burn-in Test System with 16 Bits/Cabinet & UL 94V0 supplied by Shenzhen CPET Electronics Co., Ltd. Key published specifications: Overall Size 6900*1600*2050mm; Total Input Current 100A; Total Input Power 35kW; Total input voltage Three-phase five-wire system 380Vac (rated). Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Overall Size | 6900*1600*2050mm |
|---|---|
| Total Input Current | 100A |
| Total Input Power | 35kW |
| Total input voltage | Three-phase five-wire system 380Vac (rated) |
| Fire protection requirements | Materials meet UL 94V0 rating |
| Safety requirements | Comply with IEC62368 international standard design requirements |
| Burn-in product power | 7.5kW/bit |
| Burn-in product input voltage | 50-800Vdc |
| Burn-in product input current | 25A/bit |
| Low-voltage power of Burn-in products | 3.2kW/bit |
| Low voltage voltage of Burn-in products | 8-30V |
| Burn-in product battery current | 240A/bit |
| Burn-in product AC power | 7kW/bit |
| Burn-in products AC voltage | 220/380Vac/50Hz three-phase five-wire |
| Burn-in product AC current | 32A/bit |
| Power Connector Type | SB50 (HV+/HV-) |
| AC Connector Type | PA350 (L1/L2/L3/N/PE) |
| Signal Connector Type | 24Pin 5566 |
| Constant temperature range | Room temperature+5℃-60℃ |
| Input power | 130kW |
| Volume size | 2100*1600*2050mm |
| Material | cold rolled sheet |
| Water temperature range | Room temperature+5°C-60°C |
| Water temperature accuracy | ±5°C |
| Number of serial products/way | 4/way |
| Dissipated power/circuit | 4kW/way |
| Cooling method | Chilled water or air cooling |
| Water pressure range | 0.05-0.2MPa |
| Flow range | 3-15L/min |
| Channel diameter | 3/4 inch |
