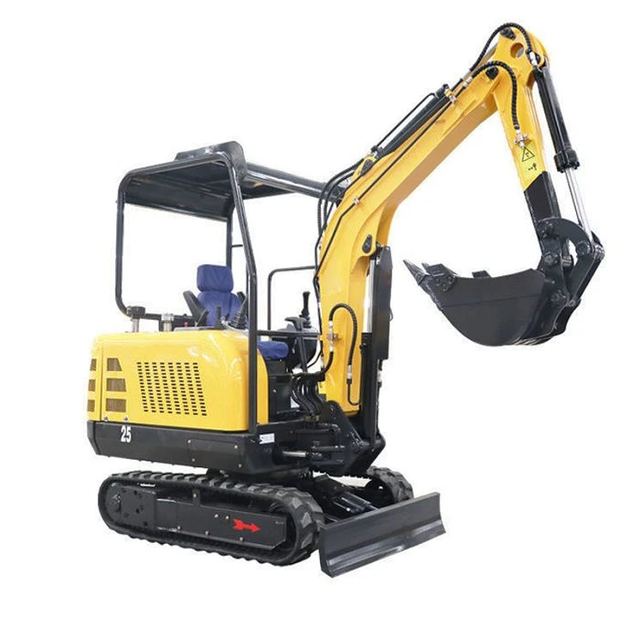

2.5 Ton Digger
Model YFE25
Overview
2.5 Ton Digger supplied by Shandong Infront Machinery Co., Ltd. Listed under Excavators. Key published specifications: Operating Weight 2200kg; Digging bucket capacity 0.08cbm; Engine Model Yanmar /Changchai; Rated power 20kw/2200rpm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Operating Weight | 2200kg |
|---|---|
| Digging bucket capacity | 0.08cbm |
| Engine Model | Yanmar /Changchai |
| Rated power | 20kw/2200rpm |
| Total Length | 4082mm |
| Total Width | 1200mm |
| Total Height | 2128mm |
| Ground Clearance | 458mm |
| Ground Pressure | 38kpa |
| Max. Digging depth | 2150mm |
| Max. Digging height | 3714mm |
| Max. Dumping height | 2488mm |
| Min. Rotation radius | 4023mm |
| Travel speed | 2.2Km/h |
| Bucket Width | 490mm |
| Track Gauge | 950mm |
| Track Width | 230mm |
| Track Length(on ground) | 1900mm |
| Main Pump | Triple Pump |
| Max.Rpm of the pump | 2500r/min |
| Pump Displacement | 25ml/r |
