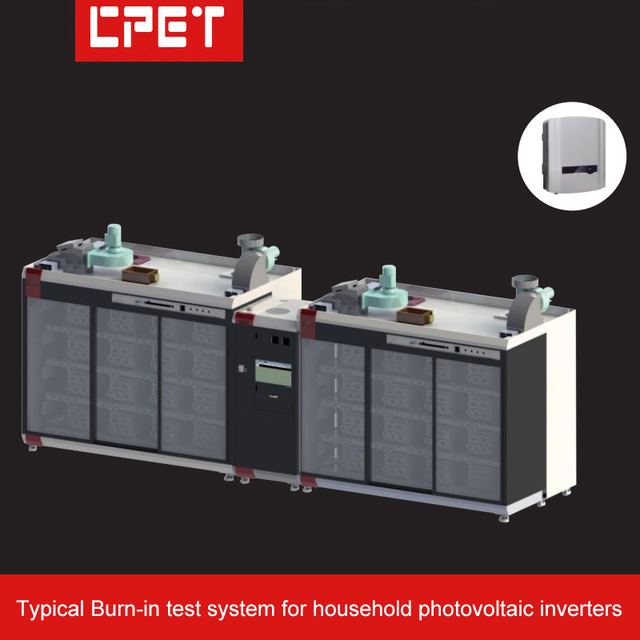

16 Bits/Cabinet Burn-in System for Photovoltaic Inverters
Model CP-XNY3004
Overview
16 Bits/Cabinet Burn-in System for Photovoltaic Inverters supplied by Shenzhen CPET Electronics Co., Ltd. Key published specifications: Total Input Current 100A; Total Input Power 50kW; Overall Size 5100*1200*2050mm; Total Input Voltage Three-phase Five-wire System 220Vac (rated). Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Total Input Current | 100A |
|---|---|
| Total Input Power | 50kW |
| Overall Size | 5100*1200*2050mm |
| Total Input Voltage | Three-phase Five-wire System 220Vac (rated) |
| Burn-in bits/layer | 4 bits/layer |
| Burn-in product power | 7kW/bit |
| Burn-in product input voltage | 50-750Vdc/bit |
| Burn-in product input current | 25A/bit |
| Burn-in Product Load Category | 6.6kW/bit |
| Burn-in product load current | 220Vac/50Hz |
| Burn-in product output current | 32A/bit |
| AC Connector Type | PA45 (L/N/PE) |
| DC Connector Type | MC4 photovoltaic connector (PV+/PV-/4 groups) |
| Signal Connector Type | RJ45 (network port) |
| Input power | 130kW |
| Feedback power | 105.6kW |
| Constant temperature range | Room temperature+5°C-60°C |
| Constant temperature accuracy | ±5°C |
| Open type | Sliding door/folding door/side door |
| Volume size | 2100*1200*2050mm |
| Dimensions in the product area | 1700*550*1500mm |
| Bit space size | 425*550*350mm |
| Minimum floor height | 300mm |
| Top floor height | 1450mm |
| Product area air duct direction | Left and right ventilation |
| Cooling method | Air cooling |
| Material | 1.5mm cold rolled sheet, epoxy sheet (laminate) |
| Certification | CE,ROHS |
