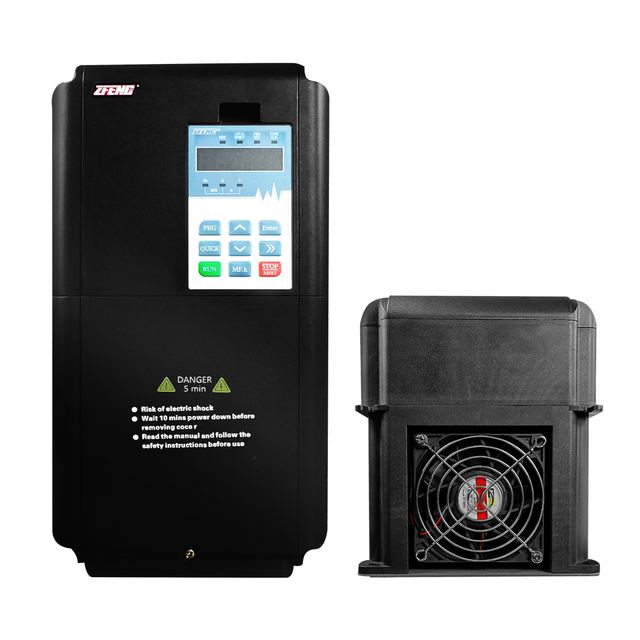

ZF900 Series Variable Frequency Drive
Overview
ZF900 Series Variable Frequency Drive supplied by Guangdong Zhufeng Electric Co., Ltd. Key published specifications: Output Frequency 0–600 Hz; Power Range 0.75kW – 800kW; Overload Capacity 150% rated current for 60 seconds; Protection Class IP20 / IP54 Optional. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Output Frequency | 0–600 Hz |
|---|---|
| Power Range | 0.75kW – 800kW |
| Overload Capacity | 150% rated current for 60 seconds |
| Protection Class | IP20 / IP54 Optional |
| Cooling Method | Forced Air Cooling |
| Matching Motor Power | 7.5-800kW |
| Operating Temperature | -10°C To 50°C |
| Control Mode | SVC/VF/FVC |
| Input Frequency | 50/60 Hz |
| Includes protection against | Overvoltage |
