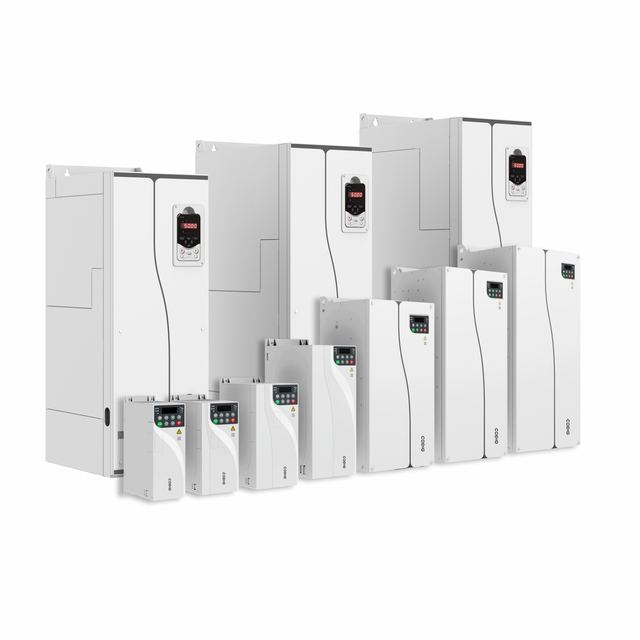

HV610 Crane VFD Frequency Converter Variable Frequency Drive
Model HV610
Overview
HV610 Crane VFD Frequency Converter Variable Frequency Drive, listed under Variable Speed Drives by SENDEN TECH LIMITED in Hong Kong. Published figures include input voltage 380V（-15%）～480V（+10%） Three Phase, output frequency 0～600Hz and humidity 15%~95% , No-condensing.
Technical specifications
| Input Voltage | 380V（-15%）～480V（+10%） Three Phase |
|---|---|
| Output Frequency | 0～600Hz |
| Humidity | 15%~95% , No-condensing |
| Operation Temperature | -25℃~+40℃ (Operation With Derating At 40℃~55℃) |
| IP Rating | IP20 |
| Item | Specification description and technical data |
| Input power frequency | 50Hz/60Hz ±5% |
| The output voltage | 0V~input voltage |
| Torque accuracy | ≤ ± 5%, under vector control mode |
| Torque Ripple | ≤ ± 5%, under vector control mode |
| Torque response | ≤ 5ms, under vector control mode |
| Overload capacity | 150%1min/5min,180%10s/5min |
| VF curve | Linear, multi-point |
| Input frequency resolution | Digital given 0.01Hz, analog given 0.01Hz |
| Simple PLC, multi-terminal speed | Realize 16-speed operation through control terminals |
| Analog input terminal | AI1, AI2: 0V～10V/ 0 (4)mA～20mA |
| Analog output terminal | 1 channel 0V～10V/0(4)mA～20mA |
| Storage temperature | −40°C～+70°C |
| Installation method | Installation and cabinet installation |
| Protection level | IP20 |
| Cooling method | Air cooling |
| Rated voltage | three-phase 380V～480V |
| Allowable voltage fluctuation range | -15%Vac～+10%Vac |
| Open collector output; output voltage range | 0V ~ 24V; current load capacity: 50mA |
