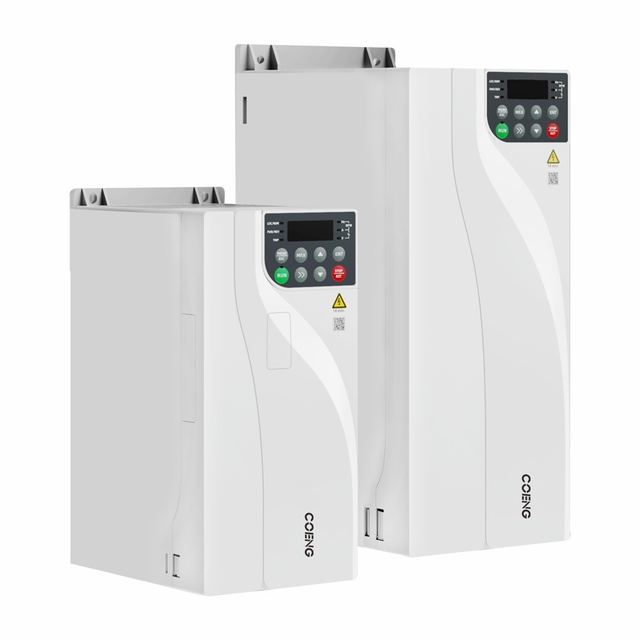

600Hz Frequency VFD Inverter For Crane Drive Induction Motor Variable Frequency Drive
Model HV 610-5
Overview
600Hz Frequency VFD Inverter For Crane Drive Induction Motor Variable Frequency Drive supplied by SENDEN TECH LIMITED. Key published specifications: Certification CE, IEC; Analog Input Terminal AI1、AI2：0V～10V/ 0 (4)mA～20mA; V/F Curve Straight-line Type, Multi-point Type; Motor Type Asynchronous Motor, Synchronous Motor. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | CE, IEC |
|---|---|
| Analog Input Terminal | AI1、AI2：0V～10V/ 0 (4)mA～20mA |
| V/F Curve | Straight-line Type, Multi-point Type |
| Motor Type | Asynchronous Motor, Synchronous Motor |
| Output Frequency | 0Hz-600Hz |
| Overload Capacity | 150% 1min/5min, 180% 10s/5min |
| Mining machinery frequency converter | Crane Drive VFD Inverter |
| Analog output terminals | 1-channel 0V-10V/0(4)mA-20mA |
| Torque response | ≤ 5ms, In Vector Control Mode |
| Installation method | Installed In A Cabinet |
| Torque pulsation | ≤±5%, In Vector Control Mode |
| Input voltage | 380V (-15%) To 480V (+10%) Three-phase |
